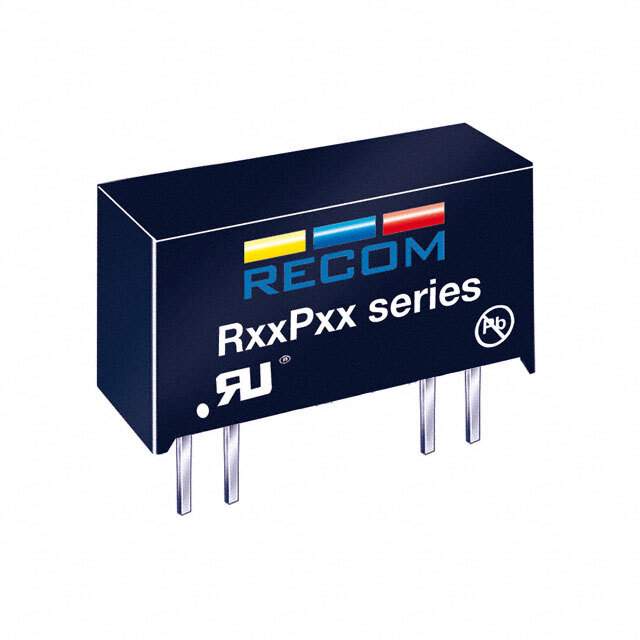

R15P12S/X2 Real Image
Same model may have multiple batches, images only for reference.

R15P12S/X2

Part No R15P12S/X2
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 84mA 13.5V - 16.5V Input
Datasheet
R15P12S/X2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RxxPxx (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 12V
Current - Output (Max) 84mA
Power (Watts) 1 W
Voltage - Isolation 6.4 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Base Product Number R15P12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 10016393
Standard Package 25
Win Source Part Number 975357-R15P12S/X2
Ultra Librarian 3D Model Ultra Librarian R15P12S/X2 CAD Model

Description

This isolated module is a DC-DC converter that belongs to the power supplies - board mount category.

  • Win Source Part Number: 975357-R15P12S/X2
  • Series: ECONOLINE RxxPxx (1W)
  • Converter Type: Isolated
  • Features: SCP
  • Package: Tube
  • Applications: ITE (Commercial), Medical
  • Standard Package: 25
  • Power (Watts): 1 W
  • Voltage - Isolation: 6.4 kV
  • Number of Outputs: 1
  • Current - Output (Max): 84mA
  • Voltage - Input (Min): 13.5V
  • Voltage - Input (Max): 16.5V
  • Voltage - Output 1: 12V
  • Efficiency: 75%
  • Mounting Type: Through Hole
  • Package/Case: 7-SIP module, 4 leads
  • Operating Temperature Range: -40°C ~ 90°C
  • Dimension: 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
  • Manufacturer: Recom Power
  • Base Product Number: R15P12
