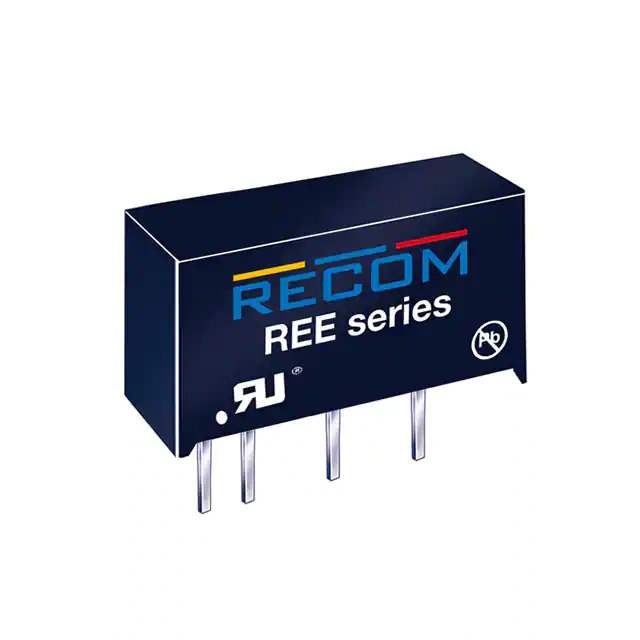

Same model may have multiple batches, images only for reference.

REE-0505S

Name: REE-0505S
Brand: Recom Power
SKU: 659516
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	REE-0505S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	REE-0505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REE (E-Series) (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	76%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Base Product Number	REE-0505
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	659516-REE-0505S
Ultra Librarian 3D Model	Ultra Librarian REE-0505S CAD Model

Alternative Products

Description

The ECONOLINE REE (E-Series) (1W) series by Recom Power offers high-quality isolated modules, and the REE-0505S is a standout product in this series. The REE-0505S is a high-quality DC DC converter that meets the demands of modern electronic applications.

Series: ECONOLINE REE (E-Series) (1W)
Application: ITE (Commercial)
Power Rating: 1W
Output Voltage: 5V
Voltage Isolation: 1 kV
Efficiency: 76%
Mounting Type: Through-Hole
Package: 6-SIP Module, 4 Leads
