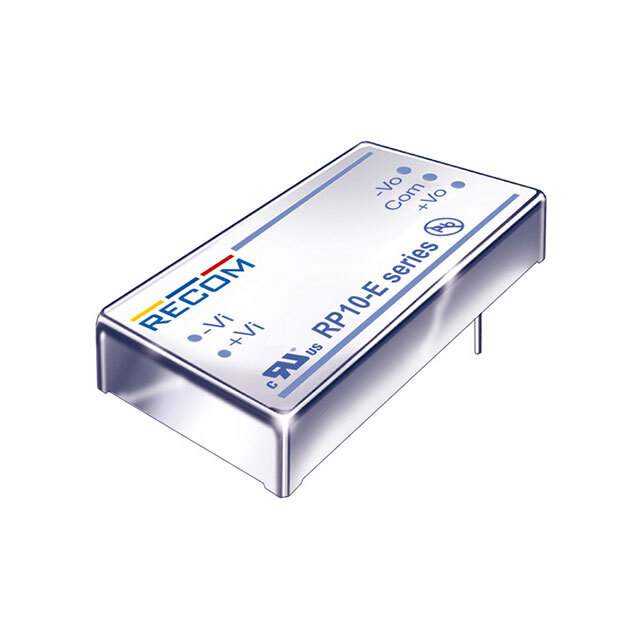

Same model may have multiple batches, images only for reference.

RP10-1212DE/P/M1

Get a Quote

Part No	RP10-1212DE/P/M1
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 18V Input
Datasheet	RP10-1212DE/P/M1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP10-E (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	416mA, 416mA
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP10-1212
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	30001146,RP101212DE/P/M1
Standard Package	9
Win Source Part Number	1088834-RP10-1212DE/P/M1
Ultra Librarian 3D Model	Ultra Librarian RP10-1212DE/P/M1 CAD Model

Alternative Products

Description

The POWERLINE RP10-E (10W) is an isolated module type DC-DC converter with remote on/off, OCP, OVP, and SCP features.

Application: ITE (Commercial)
Standard Package: 9
Power: 10W
Outputs: two
Maximum Output Current: 416mA for both outputs
Input Voltage: 9V to 18V
Output Voltage 1: 12V
Output Voltage 2: -12V
Efficiency: 83%
Mounting: through a hole
Package/Case: 6-DIP Module
Operating Temperature: -40°C to 85°C
Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Alternative Parts: PXD1512D05, AEE00CC12-M, PXD2012D15, PXE3012D12, RP30-1212DE, and RW-1215D30001146
