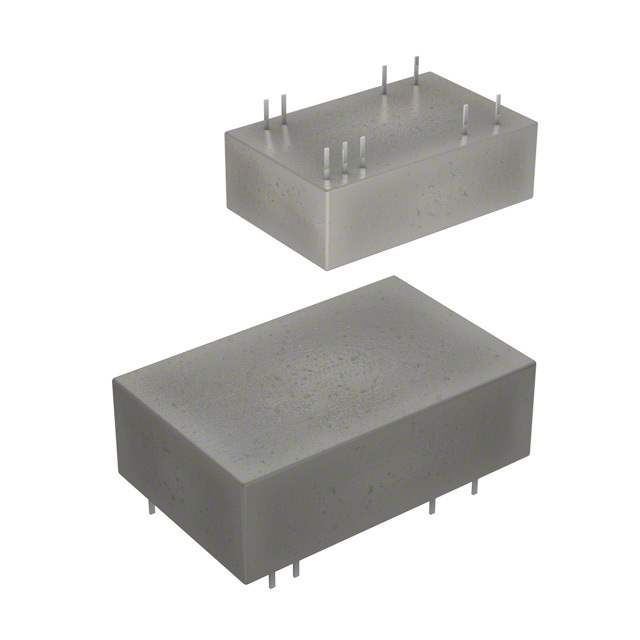

Same model may have multiple batches, images only for reference.

RP12-2415DAW

Name: RP12-2415DAW
Brand: Recom Power
SKU: 660939
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RP12-2415DAW
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 12W
Datasheet	RP12-2415DAW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP12-AW (12W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	400mA, 400mA
Power (Watts)	12 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 65°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP12-2415
Standard Package	7 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	660939-RP12-2415DAW
Ultra Librarian 3D Model	Ultra Librarian RP12-2415DAW CAD Model

Alternative Products

Description

The RP12-2415DAW is an active DC-DC converter, designed for board mount applications, and is manufactured by Recom Power.

Series: POWERLINE RP12-AW
Power: 12W
Features: Remote On/Off, Overcurrent Protection, Overvoltage Protection, Short Circuit Protection
Package: Tube (7 pieces)
Size: 1.25" L x 0.80" W x 0.40" H
Application: ITE (Commercial)
Voltage Isolation: 1.6 kV
Outputs: 2
Maximum Output Current: 400mA each
Input Voltage: 9V to 36V
Output Voltages: 15V and -15V
Efficiency: 86%
Mounting: Through Hole
Temperature Range: -40°C to 65°C
Market Status: Active
