Same model may have multiple batches, images only for reference.

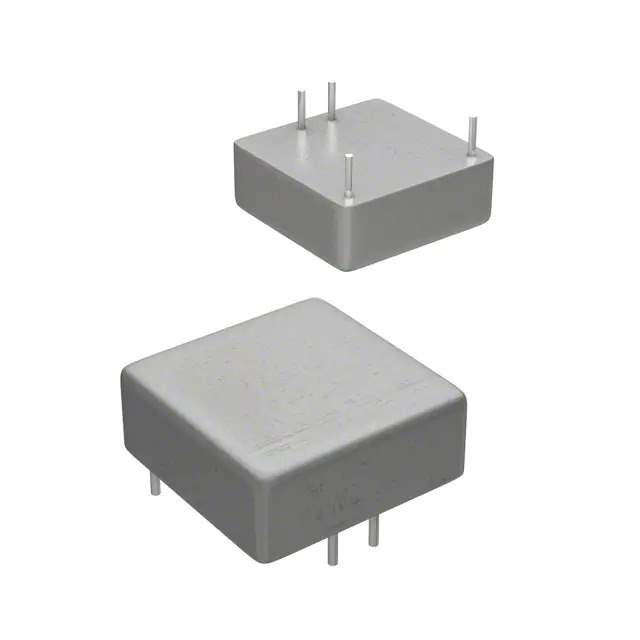

RP15-2405DA Real Image
Same model may have multiple batches, images only for reference.

RP15-2405DA

Part No RP15-2405DA
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 15W
Datasheet
RP15-2405DA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series POWERLINE RP15-A (15W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1.5A, 1.5A
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85%
Mounting Type Through Hole
Package / Case 6-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number RP15-2405
Standard Package 8 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 660956-RP15-2405DA
Ultra Librarian 3D Model Ultra Librarian RP15-2405DA CAD Model

Description

The RP15-2405DA is an isolated module DC-DC converter designed for power supplies in commercial applications.

  • Product Name: RP15-2405DA
  • Series: POWERLINE RP15-A (15W)
  • Features: OCP, OVP, SCP
  • Power Rating: 15W
  • Output Voltages: 5V and -5V
  • Maximum Output Current: 1.5A (each output)
  • Input Voltage Range: 18V to 36V
  • Mounting Type: Through-Hole
  • Package: 6-DIP Module
  • Leads: 4
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Recom Power
  • Status: Active
  • Standard Package: 8 pieces
  • Compliance: REACH
  • ECCN: EAR99
