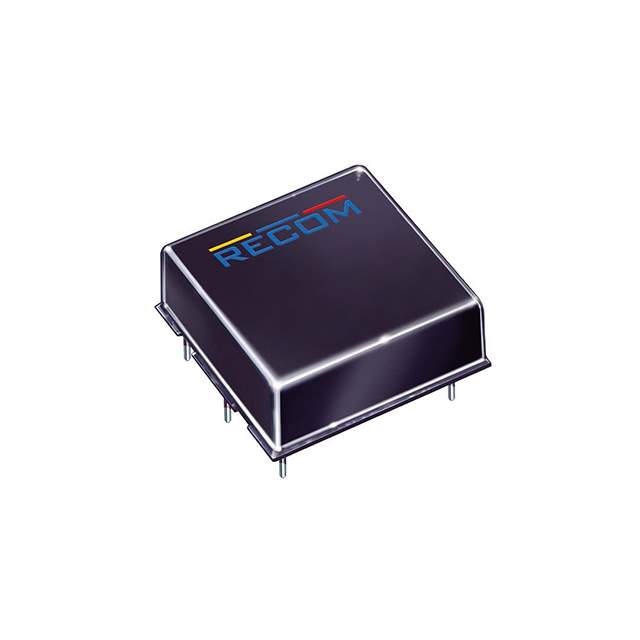

Same model may have multiple batches, images only for reference.

RPA20-2405SAW

Name: RPA20-2405SAW
Brand: Recom Power
SKU: 1336922
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RPA20-2405SAW
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Datasheet	RPA20-2405SAW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	POWERLINE RPA20-AW (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial) , Railway
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package	6-DIP Module
Base Product Number	RPA20-2405
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1336922-RPA20-2405SAW
Ultra Librarian 3D Model	Ultra Librarian RPA20-2405SAW CAD Model

Alternative Products

Description

The POWERLINE RPA20-AW (20W) is an isolated module power supply designed for ITE (Commercial) and Railway applications.

Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO protection
Voltage Isolation: 1.6 kV
Maximum Output Current: 4A
Efficiency: 88%
Voltage Input: 9V to 36V
Output Voltage: 5V
Mounting Type: Through Hole
Package: 6-DIP Module and Supplier Device Package
Operating Temperature: -40°C to 85°C with derating
Standard Package: 10 units
