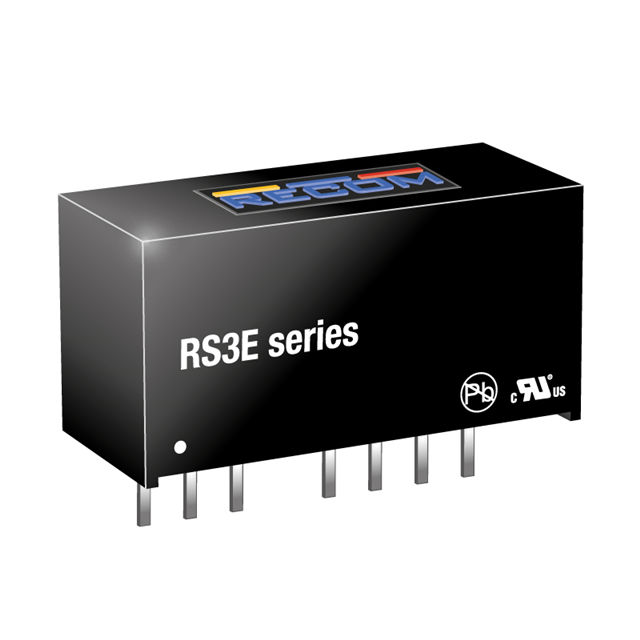

Same model may have multiple batches, images only for reference.

RS3E-1205S/H3

Get a Quote

Part No	RS3E-1205S/H3
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
Datasheet	RS3E-1205S/H3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RS3E (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 70°C (With Derating)
Efficiency	77%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active High
Approval Agency	CB, cURus
Standard Number	62368-1
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10019956,945-RS3E-1205S/H3
Standard Package	22
Win Source Part Number	1201411-RS3E-1205S/H3
Ultra Librarian 3D Model	Ultra Librarian RS3E-1205S/H3 CAD Model

Alternative Products

Description

The RS3E-1205S/H3 is an isolated module type of DC-DC converter manufactured by Recom Power.

Category: Power Supplies - Board Mount>DC DC Converters
Series: ECONOLINE RS3E (3W)
Power: 3 W
Efficiency: 77%
Remote On/Off: Yes
Current Output: Up to 600mA
Voltage Isolation: 3 kV
Operating Temperature: -40°C to 70°C (With Derating)
Mounting Type: Through Hole
Package/Case: 8-SIP Module, 7 Leads
ECCN: EAR99
