Mfr. Part No. Qty. Price

No items in the cart

View Cart
Same model may have multiple batches, images only for reference.

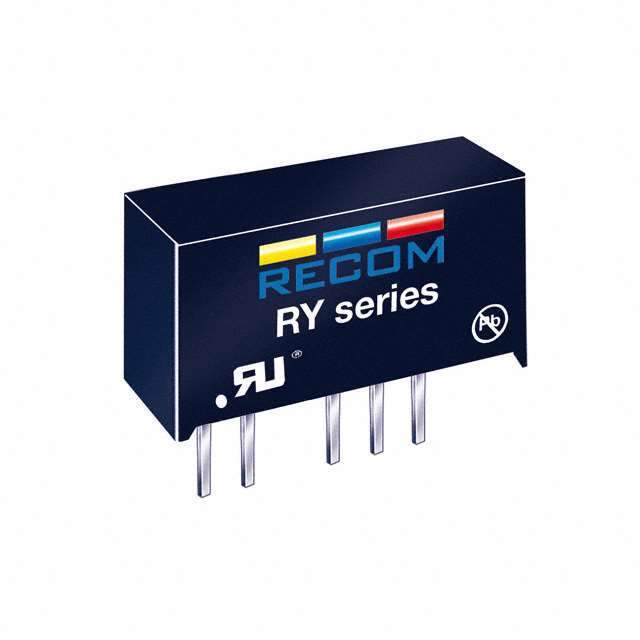

RY-0505S Real Image
Same model may have multiple batches, images only for reference.

RY-0505S

Part No RY-0505S
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.75V - 5.25V Input
Datasheet
RY-0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 5.25V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 60%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number RY-0505
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 10000937,RY0505S,945-1341
Standard Package 25
Win Source Part Number 1335318-RY-0505S
Ultra Librarian 3D Model Ultra Librarian RY-0505S CAD Model

Description

The RY-0505S is an isolated module DC-DC converter from Recom Power.

  • Power Rating: 1W
  • Voltage Isolation: 1 kV
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.75V to 5.25V
  • Output Voltage: 5V
  • Temperature Range: -40 degrees Celsius to 70 degrees Celsius
  • Applications: ITE (commercial) applications
  • Size/Dimension: 0.77 inches L x 0.28 inches W x 0.40 inches H (19.7mm x 7.1mm x 10.2mm)
  • Case/Package: 7-SIP module, 5 leads
  • Compliance: RoHS3 compliant
  • ECCN: EAR99
