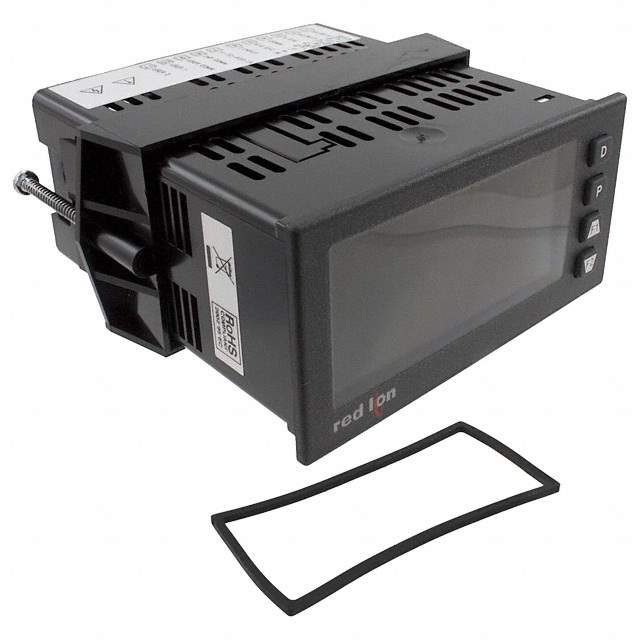

PAX2A000 Real Image
Same model may have multiple batches, images only for reference.

PAX2A000

Part No PAX2A000
Manufacturer Red Lion Controls
Catalog Panel Meters
Description MULTI METER MULTIPLE LCD PNL MT  /  Multifunction Meter (Current, Voltage, Process, Resistance, Temperature) LCD - Tri Color Characters, Backlight Display Panel Mount
Datasheet
PAX2A000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Red Lion Controls
Package Box
Type Multifunction Meter (Current, Voltage, Process, Resistance, Temperature)
Measuring Range Multiple
Display Type LCD - Tri Color Characters, Backlight
Number Of Characters Per Row 6, 9
Display Characters - Height 0.710" (18.00mm), 0.350" (8.90mm)
Output Type Option Cards Available
Voltage - Supply 40 ~ 250VAC, 21.6 ~ 250VDC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Excitation Supply, Option Cards Available
Temperature Range - Operating 0°C ~ 50°C
Weight 0.5 lb (226.8 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9029.10.8000
Other Names PAX2A000-ND,RLC196
Standard Package 1
Win Source Part Number 972107-PAX2A000
Ultra Librarian 3D Model Ultra Librarian PAX2A000 CAD Model

Description

The Red Lion Controls Multifunction Meter is a highly capable panel meter designed for industrial automation and controls applications.

  • Termination Style: Screw terminal
  • Display: LCD display features tri-color characters with backlighting
  • Ingress Protection: IP65 dust-tight and water-resistant
  • Measuring Range: Multiple
  • Voltage Supply: 40-250VAC or 21.6-250VDC
  • Panel Cutout Dimensions: Rectangular @ 92.00mm x 45.00mm
  • Weight: 0.5 lb (226.8 g)
  • Temperature Range: 0°C to 50°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 9029.10.8000
  • Other Names: PAX2A000-ND and RLC196
