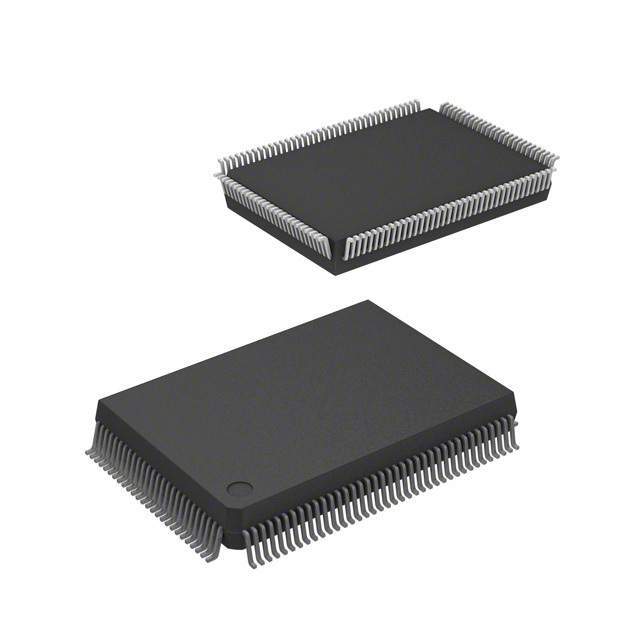

DF2329EVF25V Renesas Electronics America
Same model may have multiple batches, images only for reference.

DF2329EVF25V

Part No DF2329EVF25V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 384KB FLASH 128QFP / MCU 16-bit H8S/2000 CISC 384KB Flash 3.3V 128-Pin PQFP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8S/2300
Packaging Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 25MHz
Connectivity SCI, SmartCard
Peripherals DMA, POR, PWM, WDT
Number of I/O 86
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
RAM Size 32K x 8
Supply Voltage 2.7 V ~ 3.6 V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Package 128-BFQFP
Manufacturer Package 128-QFP (14x20)
Win Source Part Number 775809-DF2329EVF25V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Family Name DF2329EVF
Introduction Date March 19, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DF2329EVF25V CAD Model

Description

The Renesas Electronics America DF2329EVF25V is a 16-bit microcontroller from the H8 H8S/2300 series.

  • Core Processor: H8S/2000
  • Speed: 25MHz
  • Package: 128-QFP
  • Connectivity: SCI, SmartCard
  • Program Memory Size: 384KB (384K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 32K x 8
  • Data Converters: A/D 8x10b, D/A 2x8b
  • Oscillator Type: Internal
  • Supply Voltage: 2.7V to 3.6V
  • I/O: 86
  • Peripherals: DMA, POR, PWM, WDT
  • Family: DF2329EVF
  • Category: Integrated Circuits (ICs)
  • Operating Temperature Range: -20°C to 75°C (TA)
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete/End of Life
  • Supply and Demand Status: Limited
  • Alternative Parts: MC56F8355MFG60, MC56F8145VFGE, MC56F8365VFG60, MC56F8155VFG
