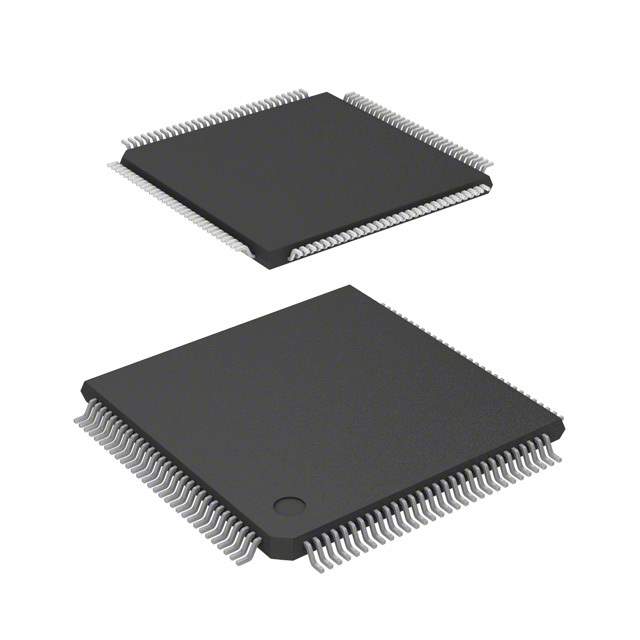

DF2357TE20V Real Image1 DF2357TE20V Real Image2
Same model may have multiple batches, images only for reference.
DF2357TE20V Real Image1 DF2357TE20V Real Image2
DF2357TE20V Real Image1 DF2357TE20V Real Image2
Same model may have multiple batches, images only for reference.

DF2357TE20V

Part No DF2357TE20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 120TQFP / H8S/2000 H8® H8S/2300 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 120-TQFP (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Renesas Electronics America
Series H8® H8S/2300
Package Tray
Product Status Obsolete
Core Processor H8S/2000
Core Size 16-Bit
Speed 20MHz
Connectivity SCI, SmartCard
Peripherals DMA, POR, PWM, WDT
Number of I/O 87
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 120-TQFP
Supplier Device Package 120-TQFP (14x14)
Base Product Number DF2357
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 90 pcs
Win Source Part Number 1381884-DF2357TE20V
Ultra Librarian 3D Model Ultra Librarian DF2357TE20V CAD Model

Description

The 1381884-DF2357TE20V is an embedded microcontroller from the H8® H8S/2300 series, manufactured by Renesas Electronics America.

  • Core Processor: H8S/2000
  • Speed: 20MHz
  • Program Memory: 128KB (128K x 8)
  • Memory Technology: Flash
  • RAM: 8K x 8
  • Peripherals: SCI, SmartCard, DMA, POR, PWM, WDT
  • I/O Pins: 87
  • Voltage Supply: 4.5V to 5.5V
  • Package: 120-TQFP
  • Operating Temperature: -20°C to 75°C
