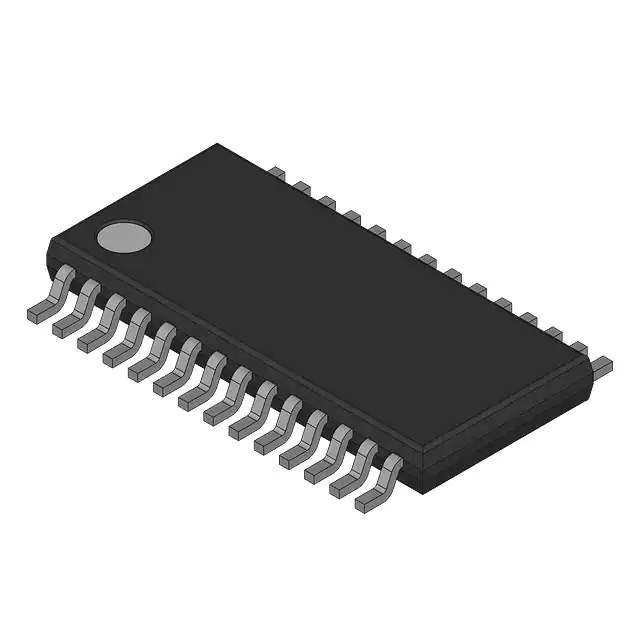

EL7566DRE Real Image
Same model may have multiple batches, images only for reference.

EL7566DRE

Part No EL7566DRE
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description SWITCHING REGULATOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Intersil
Package Tube
Product Status Obsolete
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 6V
Current - Output 6A
Frequency - Switching 200kHz ~ 1MHz
Synchronous Rectifier Yes
Temperature Range - Operating 0°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP
Base Product Number EL7566
Standard Package 50 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 588781-EL7566DRE
Ultra Librarian 3D Model Ultra Librarian EL7566DRE CAD Model

Description

The EL7566DRE is a DC-DC switching regulator from Intersil.

  • Function: Voltage regulation
  • Package: 28-TSSOP exposed pad
  • Output Type: Adjustable
  • Frequency Switching Range: 200kHz to 1MHz
  • Current Output: 6A
  • Application: Step-down applications
  • Voltage Input Range: 3V to 6V
  • Voltage Output Range: 0.8V to 6V
  • Status: Obsolete
  • Temperature Range: 0°C to 85°C
  • ECCN: EAR99
