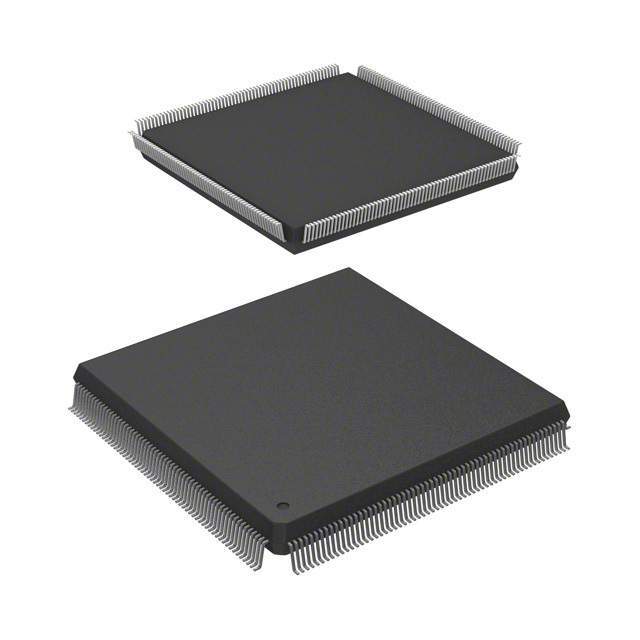

HD6417727F100CV Renesas Electronics America
Same model may have multiple batches, images only for reference.

HD6417727F100CV

Part No HD6417727F100CV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description MCU 32-bit RISC ROMLess 1.8V/3.3V 240-Pin HQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics America
Frequency (Max) 100 MHz
On-Chip DAC 2-chx8-bit
Total Internal Ram Size 16KB(kB)
Interface Type SCI/USB
Mounting Surface Mount
Program Memory Size Not Required(kB)
Operating Temp Range -20C to 75C
Package Type HQFP
Pin Count 240
Program Memory Type ROMless
Number of Timers - General Purpose 4
Operating Temperature (Max) 75C
Operating Temperature (Min) -20C
Device Core Size 32(b)
Operating Temperature Classification Commercial
Cpu Family SuperH
On-Chip ADC 6-chx10-bit
Instruction Set Architecture RISC
Programmable No
# I/Os (Max) 13
Rad Hardened No
Operating Supply Voltage (Typ) 1.8/3.3(V)
Operating Supply Voltage (Min) 1.6/2.6(V)
Operating Supply Voltage (Max) 2.05/3.6(V)
Frequency 100(MHz)
Win Source Part Number 067960-HD6417727F100CV
Family Name HD6417727
Introduction Date March 03, 2008
ECCN 3A991
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HD6417727F100CV CAD Model

Description

The Renesas Electronics America HD6417727F100CV is a high-popularity part. The device is a SuperH CPU family.

  • Core Size: 32-bit
  • Operating Temperature: -20°C to 75°C
  • Maximum Operating Frequency: 100MHz
  • On-Chip DAC: 2-chx8-bit
  • On-Chip ADC: 6-chx10-bit
  • Supply and Demand Status: Limited
