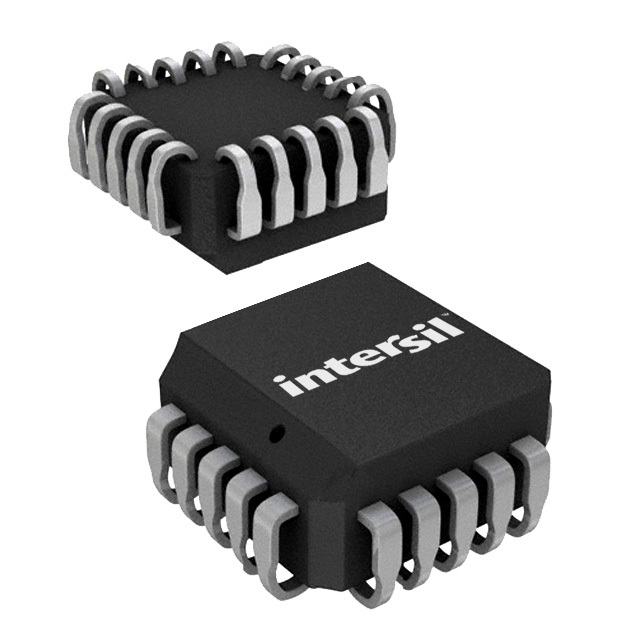

HI4P0509-5 Renesas Electronics America
Same model may have multiple batches, images only for reference.

HI4P0509-5

Part No HI4P0509-5
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | IC MULTIPLEXER DUAL 4X1 20PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America Inc.
Packaging Tube
Status Obsolete
Switch Circuit SP4T
On-State Resistance (Maximum) 400Ohm
Channel-to-Channel Matching (ΔRon) 20Ohm
Supply Voltage , Dual (V±) ±15V
Switch Time (Ton, Toff) (Maximum) 250ns, 250ns
Channel Capacitance (CS(off), CD(off)) 10pF, 12pF
Current - Leakage (IS(off)) (Maximum) 30pA
Temperature Range - Operating 0°C ~ 75°C
Manufacturer Package 20-LCC
Supplier Device Package 20-PLCC (9x9)
Family Part Number HI-509
Manufacturer Pack Quantity 46
MSL Level 3 (168 Hours)
Win Source Part Number 1180488-HI4P0509-5
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Communications & Networking, Audio
Ultra Librarian 3D Model Ultra Librarian HI4P0509-5 CAD Model

Description

The Renesas Electronics America Inc. HI4P0509-5 is an obsolete electronic component that was widely used in signal processing, communications, and networking.

  • Type: SP4T switch circuit
  • Channel-to-Channel Matching: 20Ohm
  • Channel Capacitance: 10pF and 12pF
  • Win Source Part Number: 1180488
  • Package: 20-PLCC (9x9)
  • Manufacturer Homepage: www.intersil.com/cda/home
  • On-State Resistance: 400Ohm
  • Switch Time: 250ns
  • Current Leakage: 30pA
  • Application: Audio
