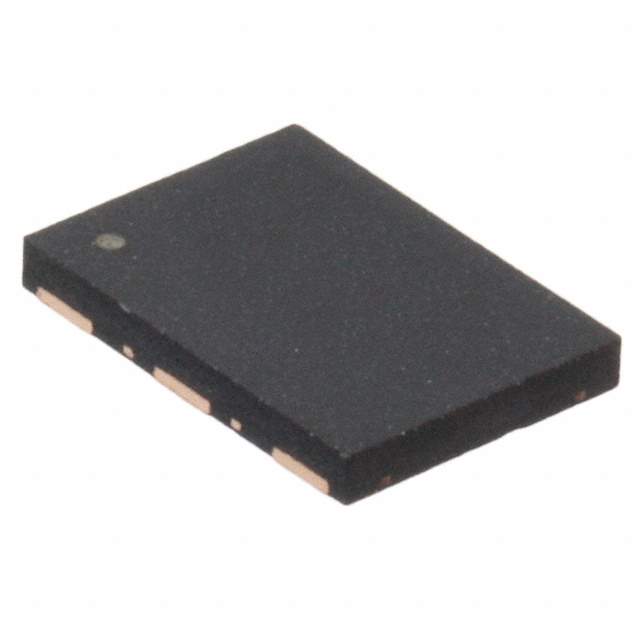

IDT4MA156250Z3AACUGI8 Real Image
Same model may have multiple batches, images only for reference.

IDT4MA156250Z3AACUGI8

Part No IDT4MA156250Z3AACUGI8
Manufacturer Renesas Electronics America
Catalog Oscillators
Description OSC MEMS 156.25MHZ LVPECL SMD / 156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Renesas Electronics America Inc
Series 4MA
Package Cut Tape (CT),
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 100mA (Typ)
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 800-2709-1,800-2709-6,4MA156250Z3AACUGI8,800-2709-2
Standard Package 500
Win Source Part Number 1218668-IDT4MA156250Z3AACUGI8
Ultra Librarian 3D Model Ultra Librarian IDT4MA156250Z3AACUGI8 CAD Model

Description

This oscillator from Renesas Electronics America Inc is part of the 4MA series and has a frequency of 156.25 MHz with a frequency stability of ±50ppm.

  • Oscillator Type: XO (standard)
  • Output: LVPECL
  • Height (Max) Seated: 0.035" (0.90mm)
  • Package: 6-SMD, no lead
  • Enable/Disable: Yes
  • Current Supply (Max): 100mA (typ)
  • Voltage Supply: 3.3V
  • Part Number: 4MA156250Z3AACUGI8
  • Other Names: 800-2709-1, 800-2709-6, and 800-2709-2
  • Status: Obsolete
