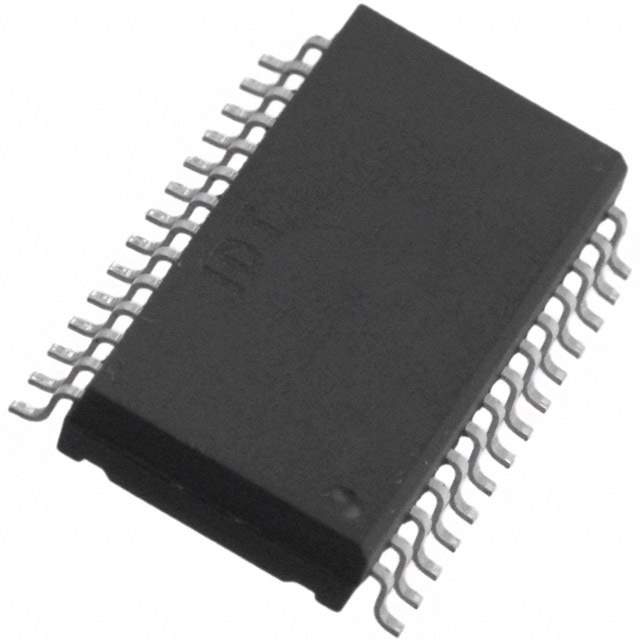

The IDT7202LA15SOGI8 is a high-speed CMOS FIFO (First-In, First-Out) memory device manufactured by Renesas Electronics America. Designed for asynchronous data buffering, it enables efficient data transfer between systems operating at different clock speeds or with varying data rates. Its primary function is to store data temporarily, allowing for seamless communication and data management in various applications.

Applications

• Networking Equipment (Routers, Switches, Hubs)
• Data Communication Systems
• Digital Signal Processing (DSP)
• Video and Audio Processing
• Industrial Automation
• Medical Equipment
• Aerospace and Defense Systems

Features

• Organization: 1024 x 9 bits
• Access Time: 15ns
• Asynchronous Operation: Independent read and write clocks.
• Low Power Consumption: Uses CMOS technology for energy efficiency.
• Empty, Full, and Half-Full Flags: Indicate FIFO status for easy management.
• Output Enable (OE) and Input Ready (IR) Flags: Enhanced data flow control.
• Retransmit Capability: Allows data to be read multiple times.
• Package: SOIC (Small Outline Integrated Circuit)
• Operating Voltage: Typically 5V, check datasheet for specifics.

Benefits

• High-Speed Data Buffering: Facilitates rapid data transfer and processing.
• Asynchronous Operation: Simplifies interfacing with systems that have different clock domains.
• Efficient Data Management: Status flags enable easy monitoring and control of FIFO occupancy.
• Reduced System Complexity: Provides a straightforward solution for data buffering.
• Low Power Consumption: Contributes to energy-efficient system designs.
• Reliable Performance: Designed for stable and dependable operation.

Additional Details

The IDT7202LA15SOGI8 leverages a dual-port architecture to support simultaneous read and write operations, optimizing data throughput. The retransmit feature enables data to be reread as needed, which is advantageous in scenarios requiring data validation or repeated processing. The integrated status flags (Empty, Full, and Half-Full, Output Enable (OE), and Input Ready (IR)) provide critical information about the FIFO’s state, allowing for effective data flow management and prevention of overflow or underflow conditions. The SOIC package allows for surface mount assembly and compact board designs. Designers should consult the Renesas datasheet for detailed specifications including timing characteristics, electrical parameters, and application-specific guidance to ensure proper implementation. This FIFO provides a balance of speed, capacity, and features suitable for a wide variety of data buffering applications.
