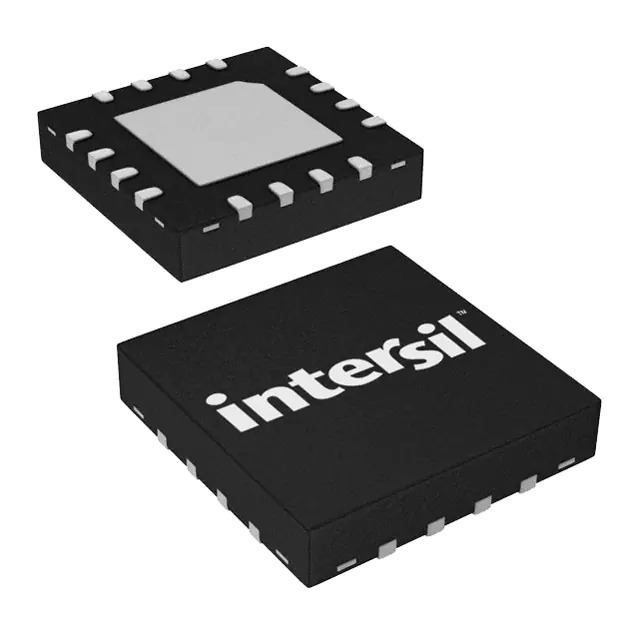

ISL83699IRZ-T

Part No ISL83699IRZ-T
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDT X 4 450MOHM 16QFN
Datasheet
ISL83699IRZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Renesas Electronics America Inc
Series -
Package Tape & Reel
Product Status Obsolete
Switch Circuit SPDT
Number of Circuits 4
On-State Resistance (Max) 450mOhm
Channel-to-Channel Matching (ΔRon) 40mOhm
Voltage - Supply, Single (V+) 1.65V ~ 3.6V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 17ns, 14ns
-3db Bandwidth -
Charge Injection -82pC
Channel Capacitance (CS(off), CD(off)) 106pF
Current - Leakage (IS(off)) (Max) 3nA
Crosstalk -98dB @ 100kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number ISL83699
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1378685-ISL83699IRZ-T
Ultra Librarian 3D Model Ultra Librarian ISL83699IRZ-T CAD Model

Description

The ISL83699IRZ-T is an analog switch integrated circuit (IC) manufactured by Renesas Electronics America Inc. Bold the product name (e.g., BAV99S,135 → ISL83699IRZ-T) and manufacturer (e.g., Nexperia USA Inc. → Renesas Electronics America Inc.).

  • IC Category: Interface
  • Function: Analog Switches, Multiplexers, Demultiplexers
  • Number of Circuits: Four
  • Switch Configuration: SPDT
  • On-State Resistance (Max): 450mOhm
  • Channel-to-Channel Matching: 40mOhm
  • Supply Voltage: 1.65V to 3.6V
  • Switch Time (Turn-On): 17ns
  • Switch Time (Turn-Off): 14ns
  • Package: 16-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Status: Obsolete
