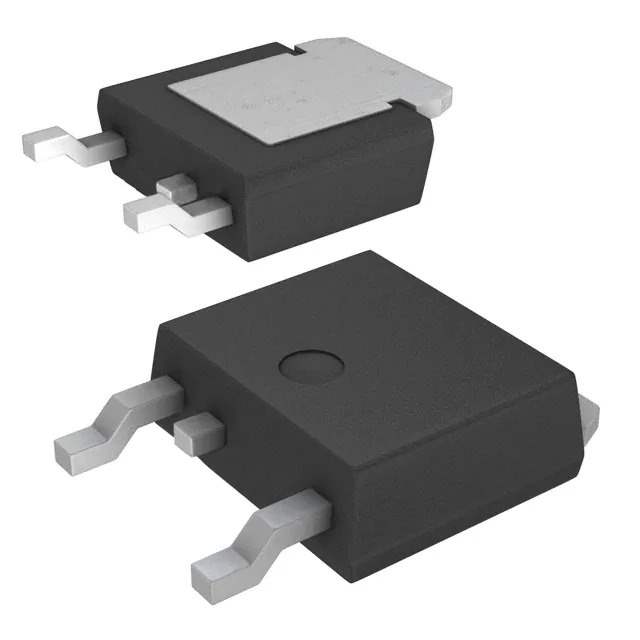

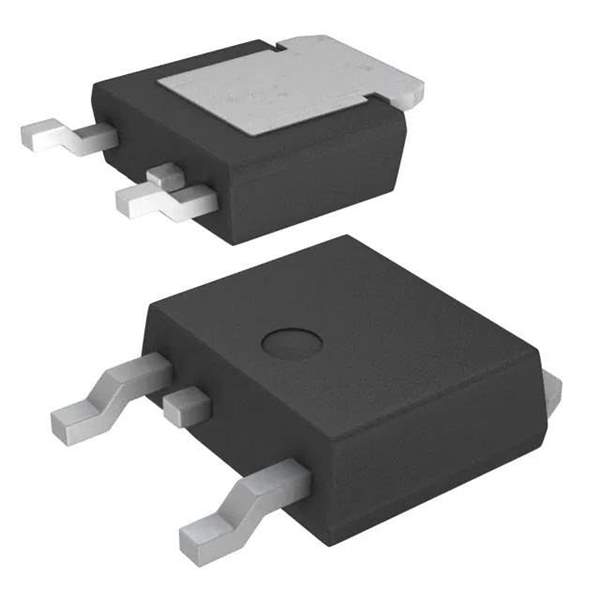

NP60N04ILF-E1-AZ Real Image
Same model may have multiple batches, images only for reference.

NP60N04ILF-E1-AZ

Part No NP60N04ILF-E1-AZ
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description NP60N04ILF-E1-AZ - SWITCHINGN-CH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Renesas Electronics America
Package Bulk
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 6.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 75 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3900 pF @ 25 V
Power Dissipation (Max) 1.2W (Ta), 100W (Tc)
Temperature Range - Operating 175°C
Mounting Type Surface Mount
Supplier Device Package TO-252 (MP-3Z)
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 755387-NP60N04ILF-E1-AZ
Ultra Librarian 3D Model Ultra Librarian NP60N04ILF-E1-AZ CAD Model

Description

The NP60N04ILF-E1-AZ is a single N-channel MOSFET transistor.

  • Category: Discrete semiconductor products
  • Application: Power
  • Vdss: 40V
  • Id: 60A @ 25°C
  • Rds On: 6.5mOhm @ 30A and 10V
  • Vgs(th): 2.5V @ 250µA
  • Power Dissipation: 1.2W @ ambient temperature (Ta), 100W @ case temperature (Tc)
  • Mounting: Surface Mount
  • Package: TO-252-3
  • Status: Obsolete
