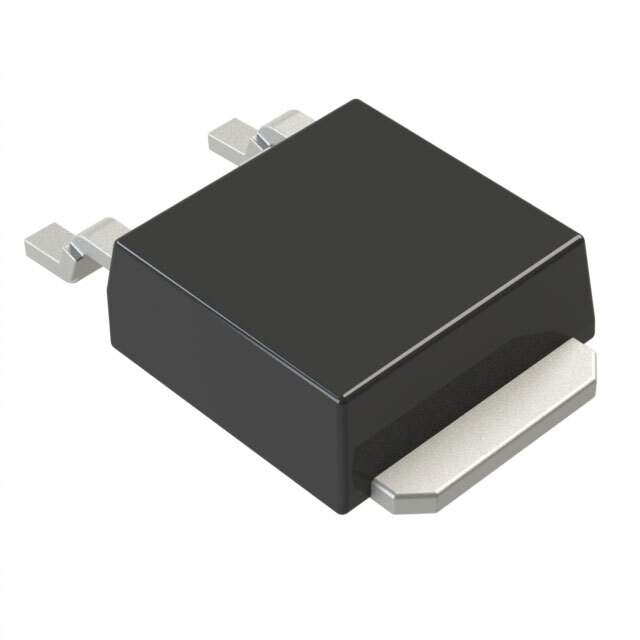

NP90N04VLK-E1-AY Real Image1 NP90N04VLK-E1-AY Real Image2
Same model may have multiple batches, images only for reference.
NP90N04VLK-E1-AY Real Image1 NP90N04VLK-E1-AY Real Image2
NP90N04VLK-E1-AY Real Image1 NP90N04VLK-E1-AY Real Image2
Same model may have multiple batches, images only for reference.

NP90N04VLK-E1-AY

Part No NP90N04VLK-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 90A TO252 / N-Channel 40 V 90A (Tc) 1.2W (Ta), 147W (Tc) Surface Mount TO-252 (MP-3ZP)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr Renesas Electronics America
Series -
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 90A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2.8mOhm @ 45A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 102 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 5700 pF @ 25 V
FET Feature -
Power Dissipation (Max) 1.2W (Ta), 147W (Tc)
Temperature Range - Operating 175°C
Mounting Type Surface Mount
Supplier Device Package TO-252 (MP-3ZP)
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Base Product Number NP90N04
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 2,500 pcs
Win Source Part Number 1383041-NP90N04VLK-E1-AY
Ultra Librarian 3D Model Ultra Librarian NP90N04VLK-E1-AY CAD Model

Description

The 1383041-NP90N04VLK-E1-AY is a single N-channel MOSFET from the FETs, MOSFETs category. Manufactured by Renesas Electronics America

  • Drain-to-Source Voltage (Vdss): 40V
  • Continuous Drain Current (Id): 90A @ 25°C
  • Package: Tape and Reel
  • Standard Package: 2,500 pieces
  • REACH Status: REACH unaffected
  • Moisture Sensitivity Level: 1 (unlimited)
  • Temperature Range: 175°C
