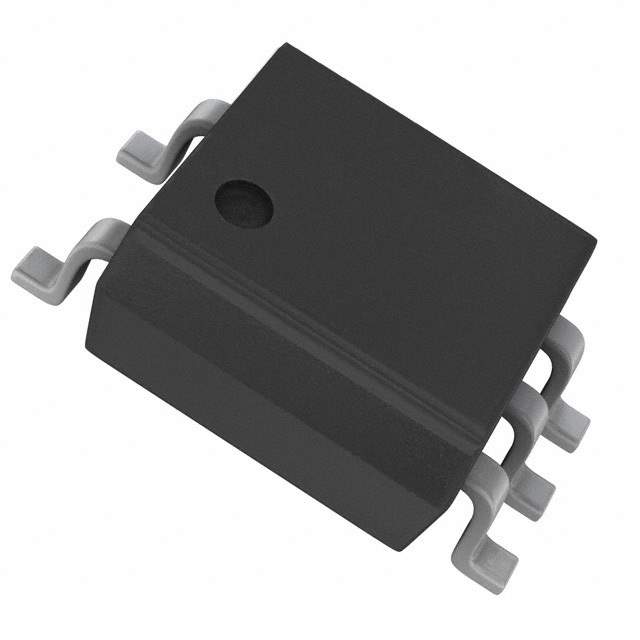

PS9122-V-F3-AX Real Image
Same model may have multiple batches, images only for reference.

PS9122-V-F3-AX

Part No PS9122-V-F3-AX
Manufacturer Renesas Electronics America
Catalog Optoisolators - Logic Output
Description HI-SPEED OPTOCPLR SO-5
Datasheet
PS9122-V-F3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 11 Weeks
Features Logic Output Optoisolator 1Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 5-SO
Manufacturer Renesas Electronics America
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 6-SOIC (0.173", 4.40mm Width), 5 Leads
Case / Package 5-SO
Family Name PS9122
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930882-PS9122-V-F3-AX
Ultra Librarian 3D Model Ultra Librarian PS9122-V-F3-AX CAD Model

Description

The Renesas Electronics America PS9122-V-F3-AX is a logic output optoisolator IC that has a 1Mbps open collector rating and comes in a 5-SO package with 6-SOIC (0.173", 4.40mm Width), 5 leads.

  • Data Rate: 1Mbps
  • Output Type: Open Collector
  • Package / Case: 5-SO
  • Package: 6-SOIC (0.173", 4.40mm Width), 5 Leads
  • Voltage Isolation: 3750Vrms
  • CMTI: 15kV/µs
  • Operating Temperature: -40°C to 100°C
  • Series: PS9122
  • Popularity: High
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Package: Reel - TR
  • Quantity Per Package: 2500 pieces
  • Estimated Production Lead Time: 11 weeks
