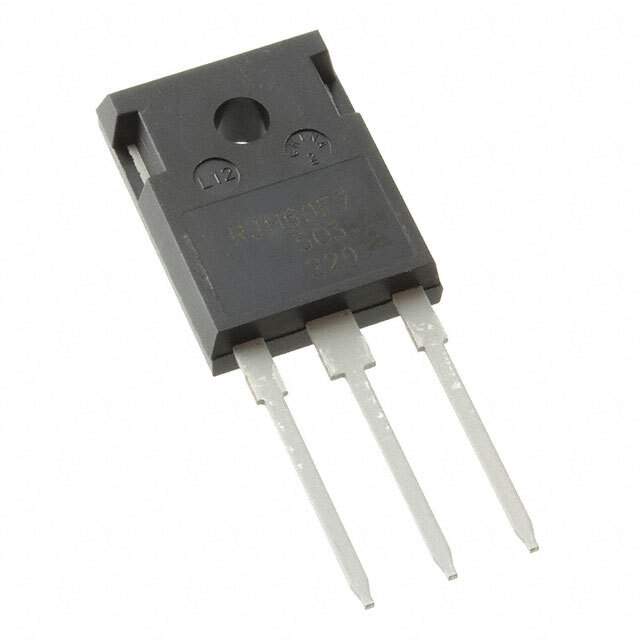

The RJH1CF5RDPQ-80 is a high-performance N-channel MOSFET manufactured by Renesas Electronics. This MOSFET is designed for high-efficiency power switching applications, offering low on-resistance and fast switching speeds. It's suitable for use in various power management and motor control systems.

Applications:

• DC-DC converters
• Motor control circuits
• Power supplies
• Inverters
• Load switching

Features:

• N-channel MOSFET: Enhances switching efficiency and performance.
• Low on-resistance (RDS(on)): Minimizes power loss during conduction.
• Fast switching speed: Enables efficient operation at high frequencies.
• High avalanche ruggedness: Provides robustness against voltage spikes.
• Pb-free and RoHS compliant: Environmentally friendly.
• Surface Mount Package: Easy to integrate into automated manufacturing processes.

Benefits:

• Improved power efficiency: Low on-resistance reduces power dissipation.
• Enhanced system performance: Fast switching speed enables higher frequency operation.
• Increased system reliability: High avalanche ruggedness protects against voltage transients.
• Simplified thermal management: Low on-resistance reduces heat generation.
• Environmentally friendly: Complies with RoHS standards.

Additional Details:

The RJH1CF5RDPQ-80 typically has a drain-source voltage (VDS) rating of 80V and a continuous drain current (ID) rating dependent on the specific operating conditions and heat sinking. The gate threshold voltage (VGS(th)) is typically a few volts. The device is commonly packaged in a surface-mount package such as a TO-252 or similar. Proper heat sinking is essential to ensure reliable operation at high currents. The gate charge (Qg) is a key parameter influencing the switching speed. Consult the manufacturer's datasheet for detailed electrical characteristics, thermal performance, and application guidelines.
