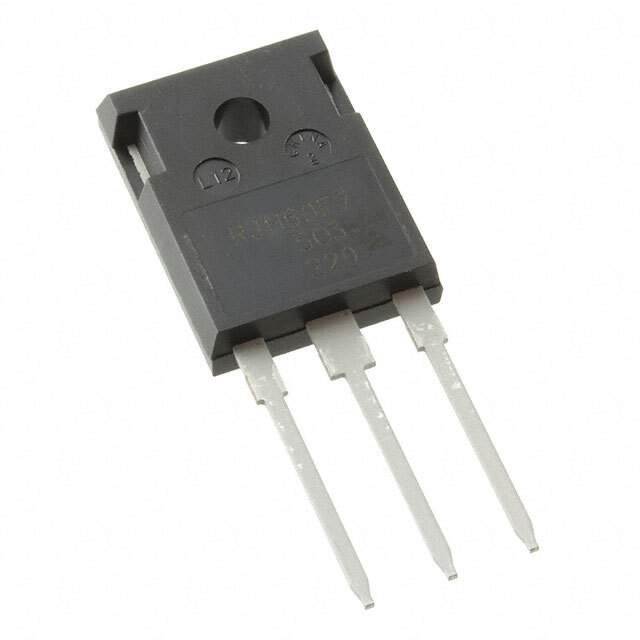

RJH60F5DPQ Real Image
Same model may have multiple batches, images only for reference.

RJH60F5DPQ

Part No RJH60F5DPQ
Manufacturer Renesas Electronics America
Catalog IGBTs - Single
Description IGBT 600V 80A 260.4W TO247A
Datasheet
RJH60F5DPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube/Rail
Status Active
IGBT Type Trench
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 80A
Collector-emitter saturation voltage(Max) 1.8V @ 15V, 40A
Maximum Power Dissipation 260.4W
Input Type Standard
Turn-on and Turn-off delay time 53ns/105ns
Testing Conditions 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) 90ns
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-247A
Win Source Part Number 295116-RJH60F5DPQ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RJH60F5DPQ CAD Model

Description

The Renesas Electronics America 295116-RJH60F5DPQ is a high popularity electronic component that is in balance in terms of supply and demand.

  • Manufacturer: Renesas Electronics America
  • Category: Discrete semiconductor products
  • Component Type: IGBT (Insulated-Gate Bipolar Transistor) with a trench configuration.
  • Maximum collector-emitter breakdown voltage: 600V
  • Maximum current collector: 80A
  • Maximum power dissipation: 260.4W
  • Suitable for: High voltage and high power applications, such as motor drives and power supplies.
