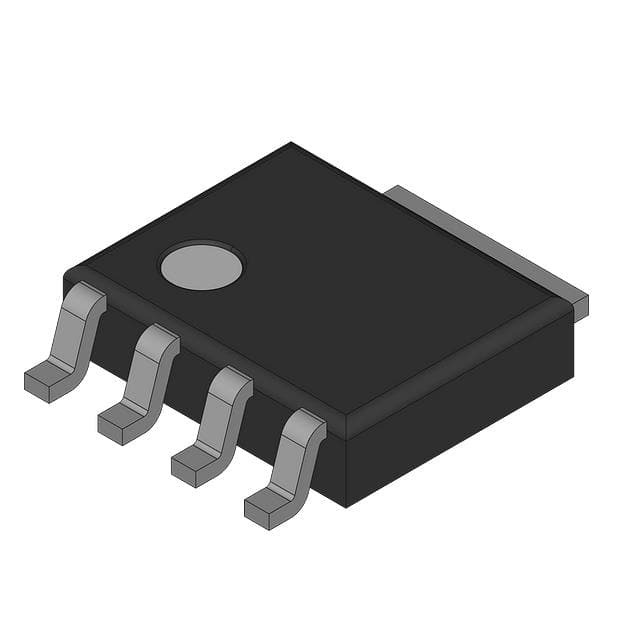

The 891756-RJK0331DPB-01#J0 is a N-Channel MOSFET transistor in the discrete semiconductor products category.

• Type: N-Channel MOSFET
• Category: Discrete semiconductor products
• Mounting: Surface mount
• Package: SC-100, SOT-669
• Drain-to-Source Voltage (Vdss): 30 V
• Continuous Drain Current (Id) @ 25°C: 40A
• On-Resistance (Rds On) @ 20A, 10V Vgs: 3.4mOhm
• Power Dissipation (Max): 50W
• Gate Charge (Qg) @ 4.5V: 22 nC
• Input Capacitance (Ciss) @ 10V Vds: 3380 pF
• Operating Temperature: Up to 150°C
• ECCN: EAR99
• MSL Level: 1
• HTSUS Code: 8541.29.0095
• Status: Active production
