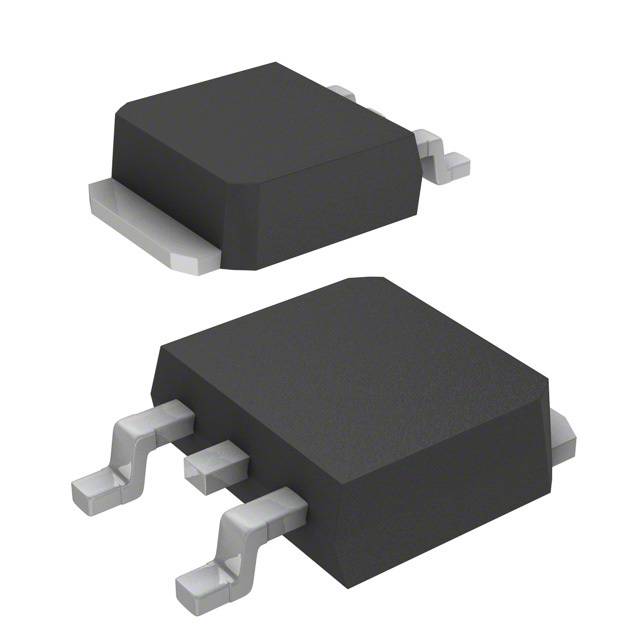

Same model may have multiple batches, images only for reference.
RJK6024DPD-00#J2 Renesas Electronics America
Same model may have multiple batches, images only for reference.

RJK6024DPD-00#J2

Part No RJK6024DPD-00#J2
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 0.4A MP3A
Datasheet
RJK6024DPD-00#J2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Max Gate Charge 4.3nC @ 10V
Max Input Capacitance 37.5pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 27.2W (Tc)
Maximum Rds On at Id,Vgs 42 Ohm @ 200mA, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package MP-3A
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 1092319-RJK6024DPD-00#J2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RJK6024DPD-00#J2 CAD Model

Description

The Renesas Electronics America 466764 is a high-performance MOSFET that is suitable for various applications.

  • Manufacturer: Renesas Electronics America
  • Product Name: 466764
  • Type: MOSFET
  • Channel: N-Channel
  • Drain-Source Breakdown Voltage: 600V
  • Rds On: 42 Ohm @ 200mA, 10V
  • Power Dissipation: 27.2W (Tc)
  • Continuous Drain Current: 400mA (Ta) @ 25°C
  • Gate-Source Voltage: ±30V
  • Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Operating Temperature: 150°C (TJ)
