Same model may have multiple batches, images only for reference.

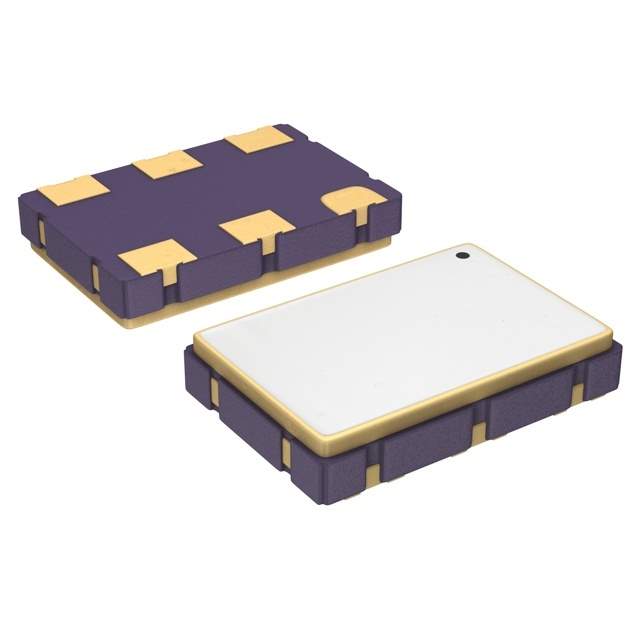

XLH736024.000000I Real Image
Same model may have multiple batches, images only for reference.

XLH736024.000000I

Part No XLH736024.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ HCMOS SMD  /  24 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XLH736024.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-HC73
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.295" L x 0.205" W (7.50mm x 5.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLH736
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names FXO-HC736R-24-ND,631-1185-6,631-1185-1,631-1185-2,FXO-HC736R-24,FXO-HC736R-24.000,FXOHC736R24,768-24-27
Standard Package 1,000
Win Source Part Number 1035924-XLH736024.000000I
Ultra Librarian 3D Model Ultra Librarian XLH736024.000000I CAD Model

Description

The Renesas Electronics America XPRESSO™ FXO-HC73 is a crystal oscillator with a mounting type of SMD (SMT).

  • Mounting Type: SMD (SMT)
  • Frequency: 24 MHz
  • Function: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Current Supply: 35mA (Max)
  • Voltage Supply: 3.3V
  • Package / Case: 6-SMD, No Lead
  • Operating Temperature: -40°C ~ 85°C
  • Dimensions: 0.295" L x 0.205" W (7.50mm x 5.20mm)
  • RoHS: Compliant
  • Radiation Hardening: No
  • MSL: 1 (Unlimited)
  • Category: OEM parts
  • Base Product Number: XLH736
