Same model may have multiple batches, images only for reference.

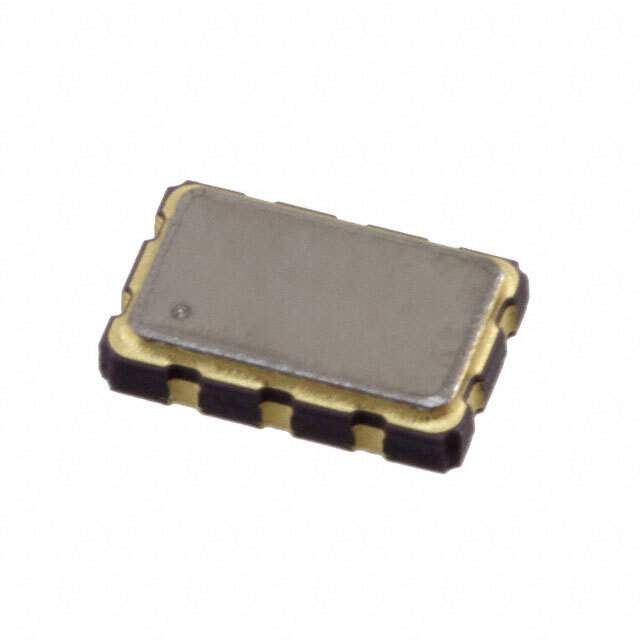

XUP535156.250JS6I8 Real Image
Same model may have multiple batches, images only for reference.

XUP535156.250JS6I8

Part No XUP535156.250JS6I8
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 156.2500MHZ LVPECL / 156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XUP535156.250JS6I8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Renesas Electronics America Inc
Series XUP
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 115mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number XUP535
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338082-XUP535156.250JS6I8
Ultra Librarian 3D Model Ultra Librarian XUP535156.250JS6I8 CAD Model

Description

The XUP535156.250JS6I8 is a high-quality XO (Standard) oscillator manufactured by Renesas Electronics America Inc.

  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Frequency: 156.25 MHz
  • Output: LVPECL
  • Frequency Stability: ±50ppm
  • Voltage: 3.3V
