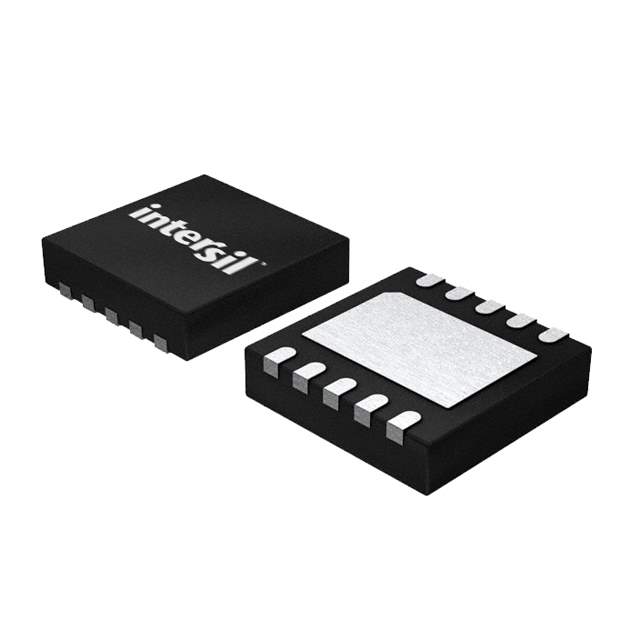

ZL1505ALNNT1 Real Image
Same model may have multiple batches, images only for reference.

ZL1505ALNNT1

Part No ZL1505ALNNT1
Manufacturer Renesas Electronics America
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 10DFN
Datasheet
ZL1505ALNNT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
Manufacturer Renesas Electronics America
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 10-VFDFN Exposed Pad
Case / Package 10-DFN (3x3)
Family Name ZL1505
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904252-ZL1505ALNNT1
Ultra Librarian 3D Model Ultra Librarian ZL1505ALNNT1 CAD Model

Description

The Renesas Electronics America 834684 is a half-bridge gate driver IC non-inverting 10-DFN (3x3) integrated circuit (IC).

  • Package: reel-TR
  • Package Size: 10-VFDFN Exposed Pad
  • Mounting Type: surface mount
  • Family Name: ZL1505
  • Case/Package: 10-DFN (3x3)
  • Product Type: integrated circuit (IC)
  • Operating Temperature: -40°C to 125°C (TJ)
  • Supply and Demand Status: balance
  • Quantity per Package: 1000
  • REACH Status: REACH unaffected
  • HTSUS Code: 8542.39.0001
