Same model may have multiple batches, images only for reference.

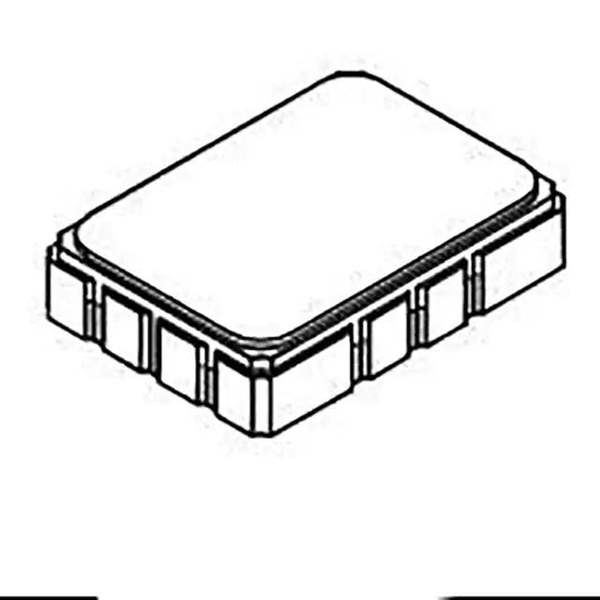

SF2040B Real Image
Same model may have multiple batches, images only for reference.

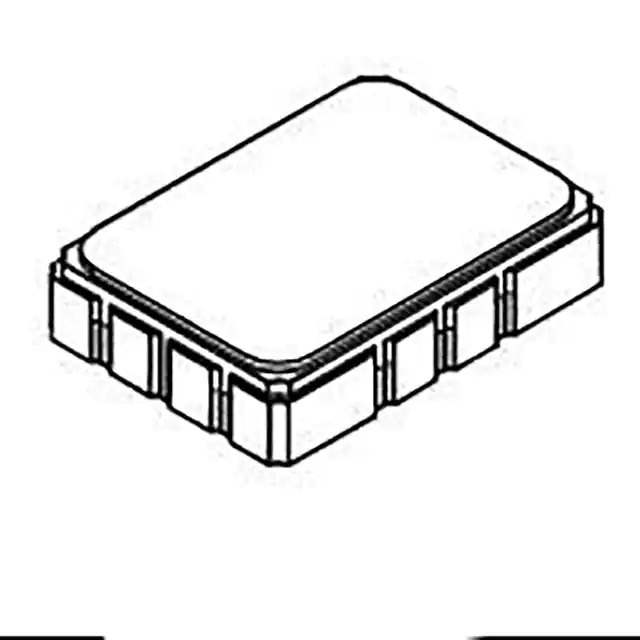

SF2040B

Part No SF2040B
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Description FILTER, SAW, 80.46 MHZ, 10SMD
Datasheet
SF2040B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr RF Monolithics, Inc
Package Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status Active
Frequency - Center 80.46MHz
Bandwidth 4.1MHz, 6.6MHz, 7.6MHz
Insertion Loss 9.5dB
Applications IF, SDARS
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF2040
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 665173-SF2040B
Ultra Librarian 3D Model Ultra Librarian SF2040B CAD Model

Description

The SF2040B is a SAW filter designed for IF and SDARS applications.

  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Maximum Height: 0.079" (2.00mm)
  • Insertion Loss: 9.5dB
  • Bandwidth: 4.1MHz, 6.6MHz, and 7.6MHz
  • Mounting: Surface mountable
  • Package: 10-SMD, No Lead
  • Manufacturer: RF Monolithics, Inc
  • Series: SF2040
  • Standard Package: 2,000 pcs
  • Product Status: Active
  • Applications: IF and SDARS systems
