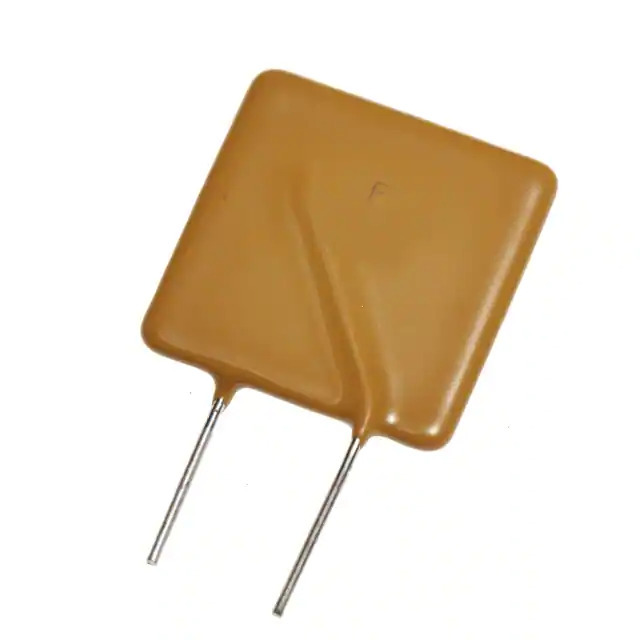

FRV016-240F

Name: FRV016-240F
Brand: RFE/Fuzetec
SKU: 1361718
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FRV016-240F
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 240V (265V Int) 160 mA Ih Through Hole Radial, Disc
Datasheet	FRV016-240F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FRV
Package	Bulk
Product Status	Active
Type	-
Voltage - Max	240V (265V Int)
Current - Hold (Ih) (Max)	160 mA
Current - Trip (It)	370 mA
Current - Max	2 A
Time to Trip	15 s
Resistance - Initial (Ri) (Min)	2.5 Ohms
Resistance - Post Trip (R1) (Max)	7.8 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.390" Dia (9.90mm)
Height - Seated (Max)	0.492" (12.50mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361718-FRV016-240F
Ultra Librarian 3D Model	Ultra Librarian FRV016-240F CAD Model

Alternative Products

Description

The FRV016-240F is a PTC resettable fuse from RFE/Fuzetec.

Series: FRV
Application: Circuit Protection
Operating Temperature: -40°C to 85°C
Maximum Voltage: 240V (265V Int)
Maximum Current: 2A
Hold Current: 160mA
Trip Current: 370mA
Time to Trip: 15s
Initial Resistance: 2.5 Ohms
Post-Trip Resistance: 7.8 Ohms
Package: Radial, Disc
Mounting Type: Through-Hole
Size/Dimension: 0.390" Dia (9.90mm)
Height-Seated (Max): 0.492" (12.50mm)
Product Status: Active
Approvals: cUL, TUV, UL
