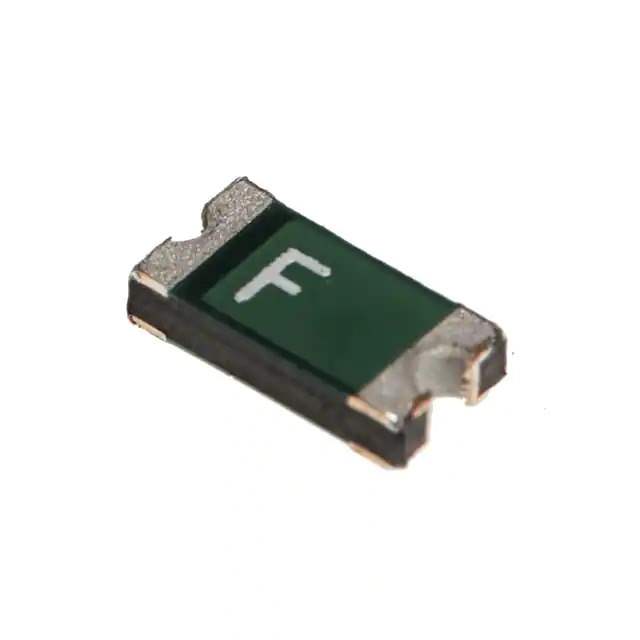

Same model may have multiple batches, images only for reference.

FSMD110-1206R

Name: FSMD110-1206R
Brand: RFE/Fuzetec
SKU: 823610
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FSMD110-1206R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 1206 SIZE
Datasheet	FSMD110-1206R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD1206
Package	Tape & Reel
Product Status	Active
Voltage - Max	8V
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Current - Max	100 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	180 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max)	0.039" (1.00mm)
Approval Agency	cUL, TUV, UL
Standard Package	50 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	823610-FSMD110-1206R
Ultra Librarian 3D Model	Ultra Librarian FSMD110-1206R CAD Model

Alternative Products

Description

The FSMD110-1206R (Part Number: 823610-FSMD110-1206R) is a PTC resettable fuse from the FSMD1206 series. It is designed to provide reliable circuit protection against overcurrent events.

Maximum Voltage: 8V
Maximum Current: 100A
Size: 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness: 0.039" (1.00mm)
Packaging: Tape and reel
Approvals: cUL, TUV, and UL
Status: Active
REACH regulations: Unaffected
