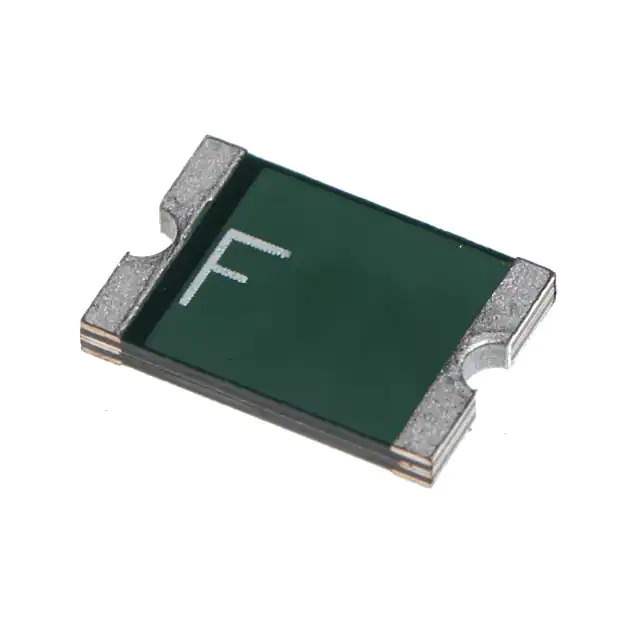

FSMD500-16-2920R Real Image
Same model may have multiple batches, images only for reference.

FSMD500-16-2920R

Part No FSMD500-16-2920R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet
FSMD500-16-2920R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD2920
Package Tape & Reel
Product Status Active
Voltage - Max 16V
Current - Hold (Ih) (Max) 5 A
Current - Trip (It) 10 A
Current - Max 100 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 25 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric), Concave
Size / Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.059" (1.50mm)
Approval Agency cUL, TUV, UL
Standard Package 1 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 844848-FSMD500-16-2920R
Ultra Librarian 3D Model Ultra Librarian FSMD500-16-2920R CAD Model

Description

The FSMD500-16-2920R is a PTC resettable fuse designed for circuit protection.

  • Voltage Max: 16V
  • Current Max: 100 A
  • Time to Trip: 5 s
  • Package Size: 2920 (7351 Metric), Concave
  • Mounting: Surface Mountable
  • Operating Temperature: -40°C to 85°C
  • Resistance Initial: 5 mOhms
  • Resistance After Trip: 25 mOhms (Max)
  • Manufacturer: RFE/Fuzetec
  • Product Status: Active
  • Approvals: cUL, TUV, UL
