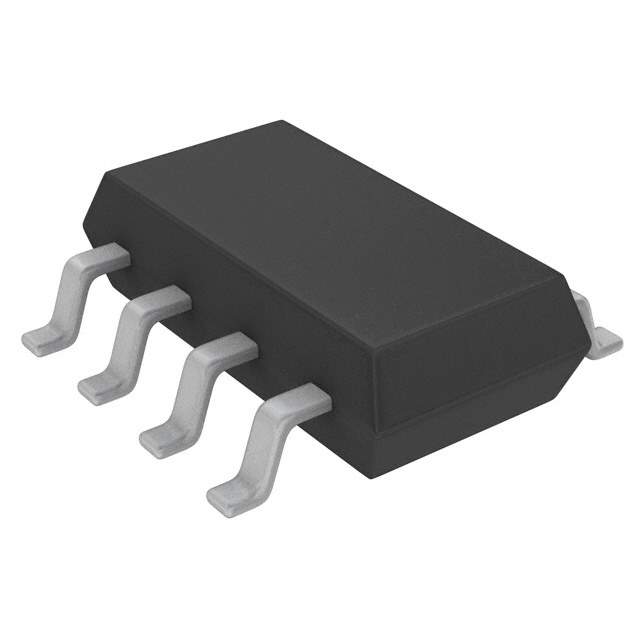

RT6255AHGJ8F Real Image
Same model may have multiple batches, images only for reference.

RT6255AHGJ8F

Part No RT6255AHGJ8F
Manufacturer Richtek USA Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 5A TSOT23-8 / Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A SOT-23-8 Thin, TSOT-23-8
Datasheet
RT6255AHGJ8F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr Richtek USA Inc.
Series ACOT™
Package Tape & Reel
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 5V
Current - Output 5A
Frequency - Switching 500kHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case SOT-23-8 Thin, TSOT-23-8
Supplier Device Package TSOT-23-8
Base Product Number RT6255
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names -RT6255AHGJ8F,RT6255AHGJ8FDKR,RT6255AHGJ8FCT,RT6255AHGJ8FTR
Standard Package 3,000
Win Source Part Number 1145711-RT6255AHGJ8F
Ultra Librarian 3D Model Ultra Librarian RT6255AHGJ8F CAD Model

Description

The RT6255AHGJ8F is a DC DC switching regulator from Richtek USA Inc. designed for PMIC - Voltage Regulators - DC DC Switching Regulators applications.

  • Series: ACOT™
  • Package: SOT-23-8 Thin, TSOT-23-8
  • Current Output: 5A
  • Voltage Input: 4.5V to 18V
  • Regulator Type: Step-Down (Buck)
  • Output Type: Adjustable
