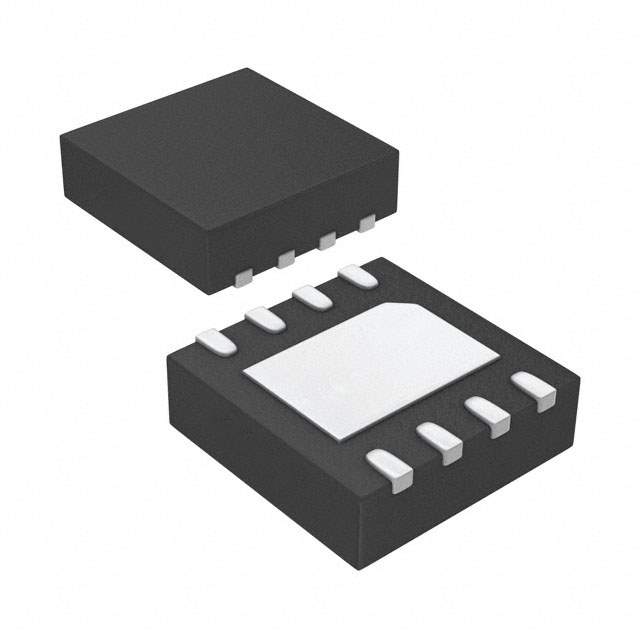

RT9715HGQW Real Image
Same model may have multiple batches, images only for reference.

RT9715HGQW

Part No RT9715HGQW
Manufacturer Richtek USA Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description 90mΩ, 2A/1.5A/1.1A/0.7A High-Side Power Switches with Flag
Datasheet
RT9715HGQW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Richtek USA Inc.
Packaging Reel - TR
Part Status Obsolete(EOL)
Switch Type USB Switch
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 2.7 V ~ 5.5 V
Current - Output (Maximum) 700mA
Rds On (Typ) 90 mOhm
Features Load Discharge, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature Range -40°C ~ 100°C (TJ)
Package 8-WDFN Exposed Pad
Manufacturer Package 8-WDFN (3x3)
Win Source Part Number 1244385-RT9715HGQW
Manufacturer Homepage www.richtek.com
Popularity Medium
Supply and Demand Status Limited
Family Name RT9715H
Introduction Date April 23, 2009
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian RT9715HGQW CAD Model

Description

This electronic component is manufactured by Richtek USA Inc. and has a Win Source Part Number of 1244385-RT9715HGQW.

  • Packaging: reel - TR
  • Operating Temperature: -40°C ~ 100°C (TJ)
  • Features: load discharge, status flag
  • Package: 8-WDFN exposed pad
  • Output Type: N-Channel
  • Interface: on/off
  • Switch Type: USB switch
  • Fault Protection: current limiting (fixed), over temperature, reverse current, UVLO
  • Number of Outputs: 1
  • Part Status: obsolete (EOL)
  • Output Configuration: high side
  • Voltage - Load: 2.7 V ~ 5.5 V
  • Rds On (Typ): 90 mOhm
  • Family Name: RT9715H
  • Category: integrated circuits (ICs)
  • Popularity: medium
  • Current - Output (Maximum): 700mA
  • Alternative Parts: MIC2043-1YTS, MIC2043-2BTS, MIC2042-2YTS
  • Introduction Date: April 23, 2009
  • Estimated EOL Date: obsolete
