The RT9728ALZQW is a power distribution switch manufactured by Richtek USA Inc. It is designed to protect electronic circuits from overcurrent and overvoltage conditions, ensuring the safe and reliable operation of connected devices.

Applications

• USB power distribution
• Hot-swap applications
• Power management in portable devices
• Overcurrent protection in industrial equipment
• Power rail protection

Features

• Adjustable current limit
• Overvoltage protection
• Reverse blocking
• Short-circuit protection
• Thermal shutdown

Benefits

• Prevents damage to sensitive electronic components from overcurrent or overvoltage.
• Enhances system reliability and uptime.
• Simplifies power management design.
• Reduces the risk of system failure due to power-related issues.
• Increases the lifespan of connected devices.

Additional Details

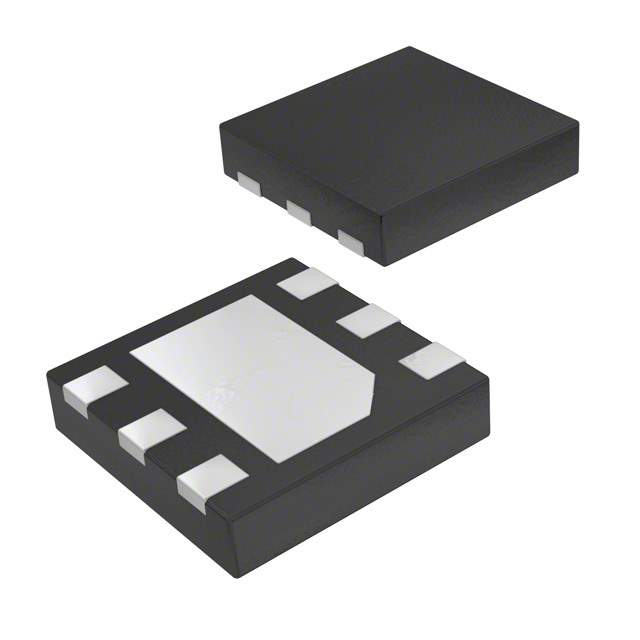

The RT9728ALZQW integrates several protection features, including an adjustable current limit that allows designers to set the maximum current allowed to flow through the switch. Overvoltage protection prevents damage from excessive voltage levels, while reverse blocking prevents current from flowing backward into the power source. Short-circuit protection immediately shuts down the switch in the event of a short circuit, and thermal shutdown protects the device from overheating. This power distribution switch is typically available in a small QFN package, making it suitable for space-constrained applications. It operates over a wide input voltage range and offers low on-resistance, minimizing power loss and heat generation.

The adjustable current limit is a key feature that allows designers to tailor the protection level to the specific requirements of the application. The integrated protection features significantly enhance the robustness and reliability of the system, preventing costly damage and downtime. The small package size and low on-resistance make it an ideal choice for portable devices and other applications where space and power efficiency are critical.
