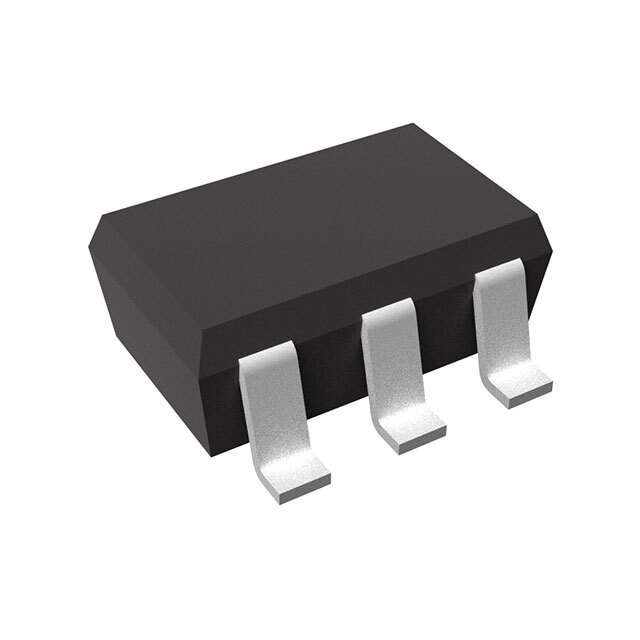

The R1225N152K-TR is a voltage regulator manufactured by Ricoh. This regulator is designed to provide a stable output voltage of 1.5V, making it suitable for various applications that require a precise and regulated low-voltage power supply.

Applications:

• Power supply for low-voltage microcontrollers
• Voltage regulation for sensitive analog circuits
• Battery-powered portable devices
• Sensor power supply
• Memory power supply

Features:

• Fixed output voltage: Provides a precise and stable 1.5V output.
• Low dropout voltage: Enables efficient operation even when the input voltage is close to the output voltage.
• Overcurrent protection: Protects the regulator and the load from excessive current.
• Thermal shutdown protection: Prevents damage due to overheating.
• Small package: Allows for compact designs and easy integration.

Benefits:

• Stable and reliable power: Ensures proper operation of connected devices with a consistent voltage.
• Efficient power usage: Low dropout voltage extends battery life in portable applications.
• Protection against damage: Overcurrent and thermal shutdown features enhance the reliability of the system.
• Compact design: Suitable for space-constrained applications.
• Simplified design: Requires minimal external components, simplifying circuit design.

Additional Details:

The R1225N152K-TR is a CMOS-based LDO (Low Dropout) voltage regulator that is known for its low current consumption and high accuracy. The regulator maintains a stable output voltage of 1.5V under varying load conditions and input voltage changes. The device incorporates built-in protection circuits such as overcurrent protection and thermal shutdown to protect the device from damage. It comes in a small package, which makes it suitable for mobile and space-constrained applications. The part number suggests that it is provided in tape and reel for automated assembly. The regulator is often used in applications where a precise and low-noise voltage supply is critical, such as in portable electronics and sensor circuits.
