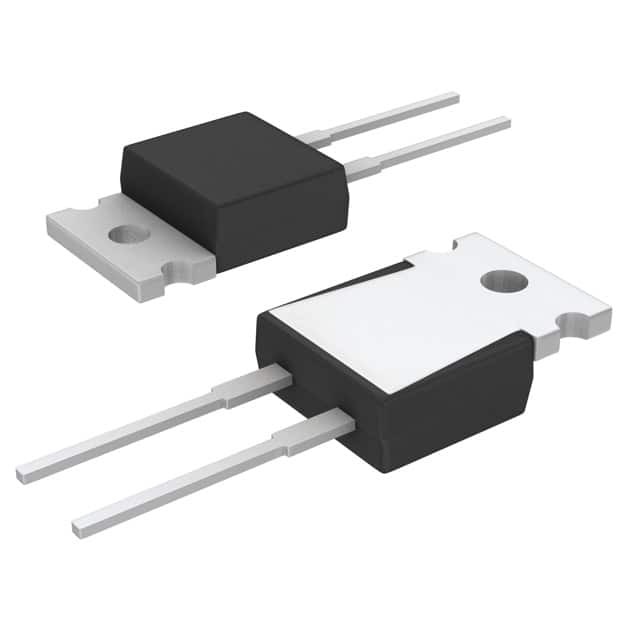

Same model may have multiple batches, images only for reference.
PF2203-0R05J1 Riedon
Same model may have multiple batches, images only for reference.

PF2203-0R05J1

Part No PF2203-0R05J1
Manufacturer Riedon
Catalog Through Hole Resistors
Datasheet
PF2203-0R05J1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series PF2200
Package Tube
Resistance 50 mOhms
Tolerance ±5%
Power (Watts) 35W
Composition Thin Film
Features Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-220-2
Supplier Device Package TO-220
Dimension 0.417" L x 0.177" W (10.60mm x 4.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1315984-PF2203-0R05J1
Ultra Librarian 3D Model Ultra Librarian PF2203-0R05J1 CAD Model

Description

The Riedon electronic component is a high-quality product that is designed to meet the needs of modern electronic devices. Bold the manufacturer Riedon.

  • Win Source Part Number: 1315984-PF2203-0R05J1
  • Resistor Type: Through-Hole
  • Series: PF2200
  • Features: Current Sense, Flame Proof, Pulse Withstanding, and Safety
  • Package: Tube
  • Height Seated Max: 0.591" (15.00mm)
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Power: 35W
  • Composition: Thin Film
  • Number of Terminations: 2
  • Resistance: 50 mOhms
  • Package/Case: TO-220-2
  • Supplier Device Package: TO-220
  • Operating Temperature: -55°C ~ 155°C
  • Dimension: 0.417" L x 0.177" W (10.60mm x 4.50mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8533.29.0000
