Same model may have multiple batches, images only for reference.

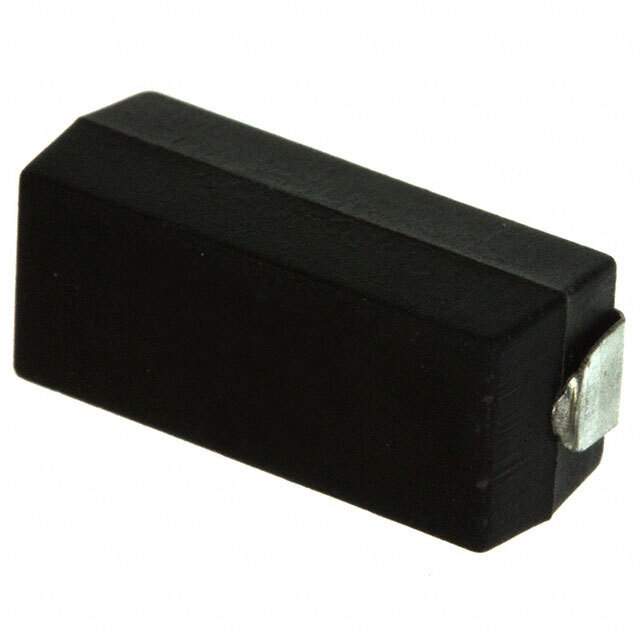

S3-10KJ8 Real Image
Same model may have multiple batches, images only for reference.

S3-10KJ8

Part No S3-10KJ8
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 5% 3W 6327  /  10 kOhms ±5% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-10KJ8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3 10000 OHM 5%,S-3-10000JTR,S-3-10000JTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237197-S3-10KJ8
Ultra Librarian 3D Model Ultra Librarian S3-10KJ8 CAD Model

Description

The Riedon electronic component is a high-quality product that is designed to meet the needs of modern electronic devices.

  • Win Source Part Number: 1237197-S3-10KJ8
  • Type: Chip resistor surface mount
  • Series: S series
  • Features: Current sense, flame proof, moisture resistant, pulse withstanding, and safety
  • Package: Tape & reel (TR)
  • Height Seated Max: 0.268" (6.80mm)
  • Standard Package: 500
  • Tolerance: ±5%
  • Temperature Coefficient: ±20ppm/°C
  • Power: 3W
  • Composition: Wirewound
  • Number of Terminations: 2
  • Resistance: 10 kOhms
  • Package/Case: 6327 J-Lead
  • Temperature Range: -55°C ~ 275°C
  • Dimension: 0.626" L x 0.272" W (15.90mm x 6.90mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8533.21.0080
  • Manufacturer: Riedon
