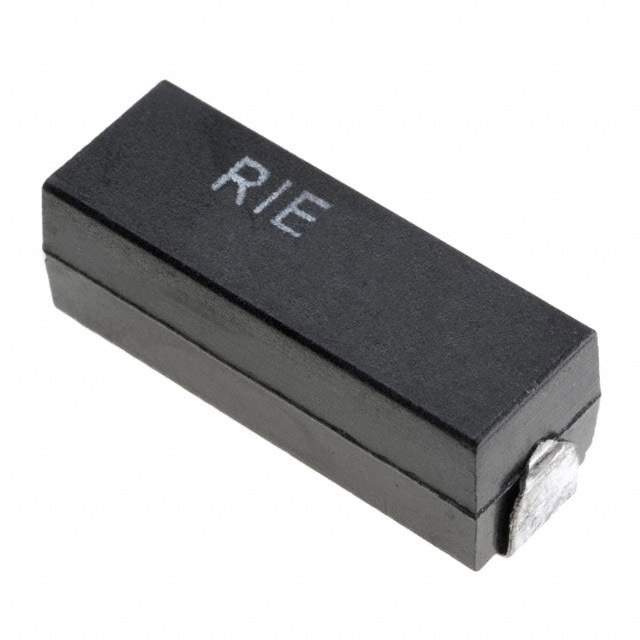

S5-150RF8 Real Image
Same model may have multiple batches, images only for reference.

S5-150RF8

Part No S5-150RF8
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 150 OHM 1% 4W 8230  /  150 Ohms ±1% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S5-150RF8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 150 Ohms
Tolerance ±1%
Power (Watts) 4W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 8230 J-Lead
Dimension 0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max) 0.319" (8.10mm)
Number of Terminations 2
Other Names S-5-150FTR,S-5-150FTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237186-S5-150RF8
Ultra Librarian 3D Model Ultra Librarian S5-150RF8 CAD Model

Description

The Riedon 1237186-S5-150RF8 is a wirewound chip resistor that comes in a tape and reel package.

  • Package: Tape and Reel
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Power Rating: 4W
  • Resistance: 150 Ohms
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, and Safe to use
  • Height When Seated: 0.319" (8.10mm)
  • Dimensions: 0.819" L x 0.296" W (20.80mm x 7.50mm)
  • Operating Temperature Range: -55°C to 275°C
  • Standard Package: 500
  • Manufacturer: Riedon
