Same model may have multiple batches, images only for reference.

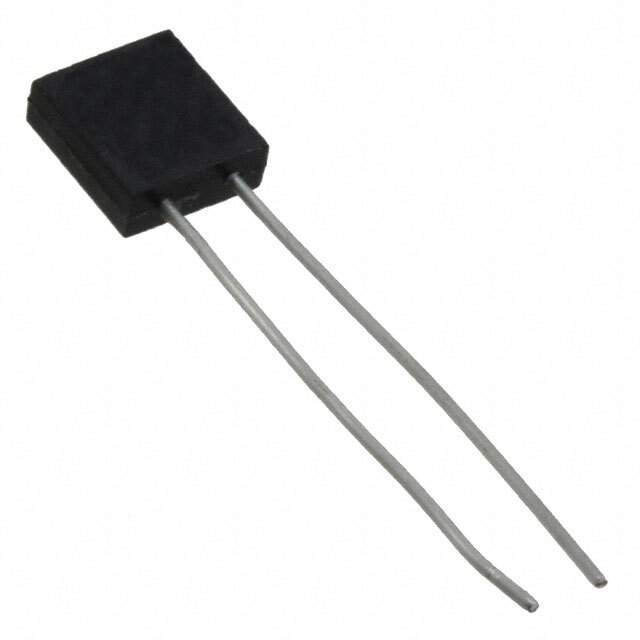

SM10-500RX Real Image
Same model may have multiple batches, images only for reference.

SM10-500RX

Part No SM10-500RX
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 500 OHM 0.01% 0.3W RADIAL  /  500 Ohms ±0.01% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Datasheet
SM10-500RX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series 100/SM/PC Precision
Package Bulk
Resistance 500 Ohms
Tolerance ±0.01%
Power (Watts) 0.3W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Non-Inductive, Safety
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 145°C
Package / Case Radial
Dimension 0.299" L x 0.102" W (7.60mm x 2.60mm)
Height - Seated (Max) 0.344" (8.74mm)
Number of Terminations 2
Other Names SM10-500RX8,696-1584
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1236264-SM10-500RX
Ultra Librarian 3D Model Ultra Librarian SM10-500RX CAD Model

Description

The Riedon 1236264-SM10-500RX is a through-hole resistor that belongs to the 100/SM/PC Precision series.

  • Resistance: 500 ohms
  • Power Rating: 0.3W
  • Resistor Type: Wirewound
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±10ppm/°C
  • Features: Flame proof, moisture resistant, and non-inductive
  • Package: Bulk
  • Standard Package: 25
  • Maximum Height (Seated): 0.344 inches
  • Operating Temperature Range: -55°C to 145°C
