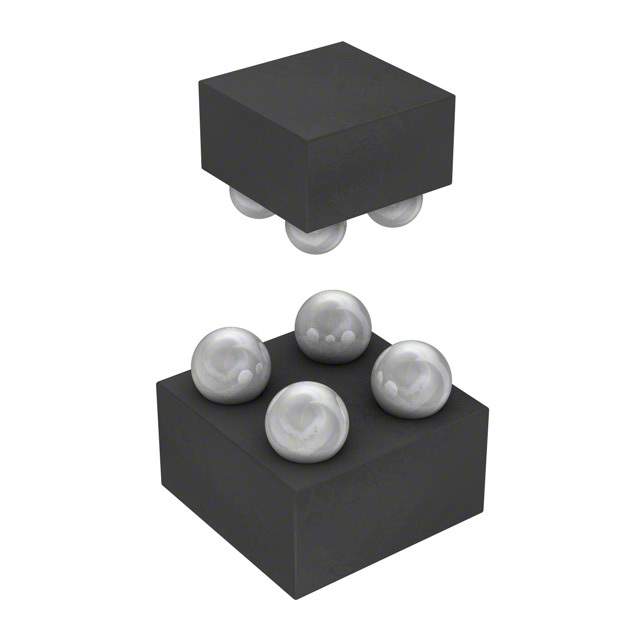

CM6100 Real Image
Same model may have multiple batches, images only for reference.

CM6100

Part No CM6100
Manufacturer Rochester Electronics
Catalog TVS - Diodes
Description TVS DIODE 3VWM 9.8VC 4WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 9.8V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 4-WLCSP (0.8x0.8)
Manufacturer ON Semiconductor
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 4-UFBGA, WLCSP
Case / Package 4-WLCSP (0.8x0.8)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2156-CM6100, 2156-CM6100-ONTR-ND
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915597-CM6100
Ultra Librarian 3D Model Ultra Librarian CM6100 CAD Model

Description

The ON Semiconductor CM6100 is a high-quality TVS diode that is designed to provide excellent protection against electrostatic discharge (ESD) and other voltage transients.

  • Manufacturer: ON Semiconductor
  • Type: TVS diode
  • Clamp Voltage: 9.8V
  • Current Rating: 1A
  • Mounting: Surface Mounted
  • Status: Obsolete
