Same model may have multiple batches, images only for reference.

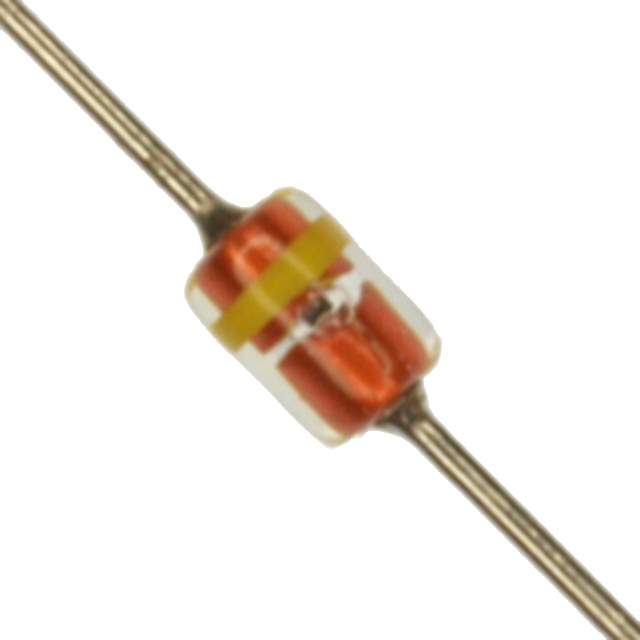

1SS244T-72 Real Image
Same model may have multiple batches, images only for reference.

1SS244T-72

Part No 1SS244T-72
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 220V 200MA MSD
Datasheet
1SS244T-72 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 220V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.5V @ 200mA
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 10μA @ 220V
Capacitance @ Vr, F 3pF @ 0V, 1MHz
Mounting Through Hole
Case / Package MSD
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 053613-1SS244T-72
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1SS244T-72 CAD Model

Description

1SS244T-72 - Surface Mount Switching Diode

The 1SS244T-72 is a surface-mount diode designed for efficient switching and signal modulation in compact designs.

  • Features and Benefits:
    • Surface-mount package for high-density boards
    • Excellent frequency characteristics
    • Low power loss and high performance
  • Applications:
    • Portable electronic devices
    • Communication circuits
    • High-speed switching
    • RF signal processing

The 1SS244T-72 is a top choice for manufacturers looking to optimize space without sacrificing performance.
