The BA05FP is a 5V fixed output, 1A positive voltage regulator manufactured by Rohm Semiconductor. It is designed to provide a stable and regulated 5V power supply for various electronic circuits and devices. This linear regulator is widely used due to its simplicity, reliability, and ease of integration.

Applications

• Microcontroller Power Supply: Provides a stable 5V supply for microcontrollers in embedded systems, ensuring proper operation.
• Logic Circuits Power Supply: Used to power digital logic circuits, such as TTL and CMOS, requiring a stable 5V supply.
• Sensor Power Supply: Supplies regulated power to sensors in various applications, ensuring accurate and consistent readings.
• Portable Devices: Integrated into portable electronic devices like handheld games, calculators, and MP3 players to regulate battery voltage.
• General Purpose Power Regulation: Used in a wide range of electronic projects and devices where a stable 5V supply is needed.

Features

• Fixed 5V Output: Provides a stable and regulated 5V output voltage.
• 1A Output Current: Capable of supplying up to 1A of output current to connected devices.
• Overcurrent Protection: Includes built-in overcurrent protection to prevent damage from excessive current draw.
• Thermal Shutdown: Features thermal shutdown protection to prevent overheating and damage to the regulator.

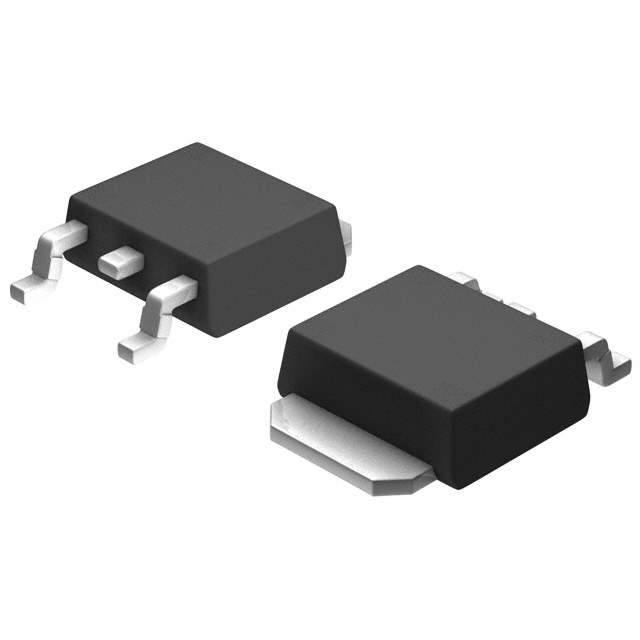

• TO-252 Package: Comes in a compact TO-252 package for easy surface mounting and efficient heat dissipation.

Benefits

• Stable Power Supply: Ensures a stable and reliable 5V power supply for electronic components, preventing malfunctions.
• Overload Protection: Protects against overcurrent and thermal overload, enhancing the lifespan and reliability of the regulator.
• Easy to Use: Simple and straightforward to integrate into circuits with minimal external components required.
• Efficient Heat Dissipation: TO-252 package allows for efficient heat dissipation, improving overall performance.
• Wide Operating Temperature Range: Operates over a broad temperature range, making it suitable for various environments.

Additional Details

The BA05FP linear voltage regulator is designed to maintain a constant 5V output, even with fluctuations in the input voltage or load current. The overcurrent and thermal shutdown features provide added protection, making it a robust and reliable choice for various applications. The datasheet provides detailed information on the input voltage range, dropout voltage, and other electrical characteristics. This regulator requires minimal external components, such as input and output capacitors, to ensure stable operation. It is widely used in both commercial and hobbyist projects due to its ease of use and robust performance.
