Products specifications

Category Integrated Circuits (ICs)>Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Rohm Semiconductor
Package Tape & Reel
Amplifier Type General Purpose
Number of Circuits 2
Slew Rate 0.2V/µs
Gain Bandwidth Product 500 kHz
Current - Input Bias 45 nA
Voltage - Input Offset 2 mV
Current - Supply 500µA
Current - Output / Channel 30 mA
Voltage - Supply Span (Min) 3 V
Voltage - Supply Span (Max) 32 V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)

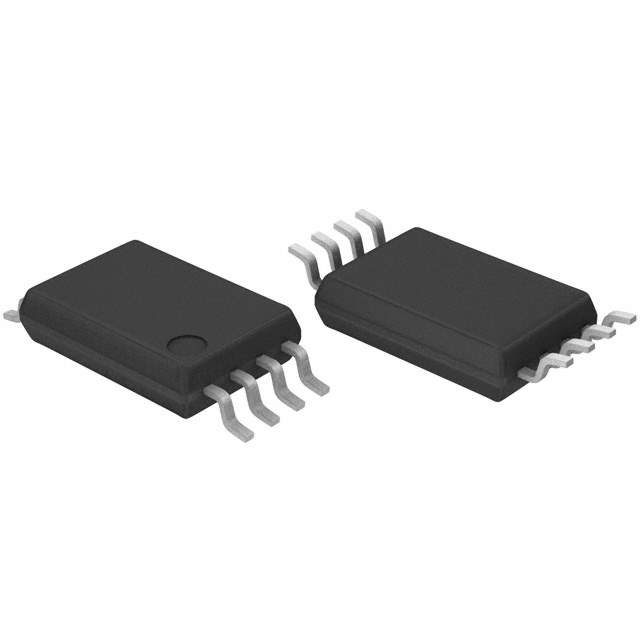

Package / Case 8-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 8-SSOP-B
Base Product Number BA2904
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Names BA2904WFV-E2DKR,BA2904WFV-E2TR,BA2904WFV-E2CT
Standard Package 2,500
Win Source Part Number 1167517-BA2904WFV-E2
Ultra Librarian 3D Model Ultra Librarian BA2904WFV-E2 CAD Model

Description

The BA2904WFV-E2 is a general-purpose amplifier integrated circuit designed for instrumentation, OP amps, and buffer amps. It is a dual-channel amplifier with a slew rate of 0.2V/µs and a gain bandwidth product of 500 kHz. This amplifier has a low input bias current of 45 nA and input offset voltage of 2 mV. The output current per channel is 30 mA, and it has a supply current of 500 µA. The BA2904WFV-E2 is a surface-mount device (SMD) with an 8-LSSOP package. It can operate in a temperature range of -40°C to 125°C. This amplifier is part of the BA2904 series and is supplied in tape and reel packaging. The MSL level of the BA2904WFV-E2 is 1, and it is REACH unaffected.
