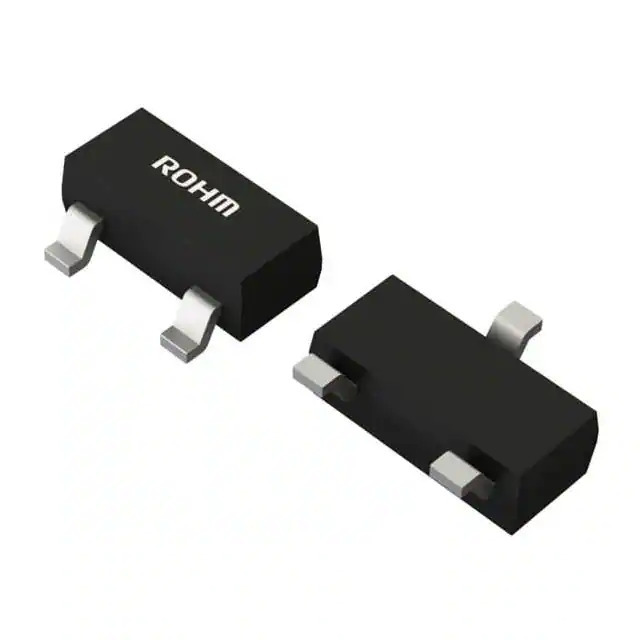

Same model may have multiple batches, images only for reference.
BCX19HZGT116 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

BCX19HZGT116

Part No BCX19HZGT116
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 45V 0.5A SST3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 620mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 100mA, 1V
Power - Max 200 mW
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SST3
Base Product Number BCX19
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 1377222-BCX19HZGT116
Ultra Librarian 3D Model Ultra Librarian BCX19HZGT116 CAD Model

Description

The BCX19HZGT116 is a single NPN bipolar transistor manufactured by Rohm Semiconductor.

  • Application: Automotive (AEC-Q101)
  • Package: SOT-23-3
  • Mounting Type: Surface Mount
  • Collector Current: 500mA (max)
  • Collector-Emitter Breakdown Voltage: 45V (max)
  • DC Current Gain: 100 @ 100mA and 1V
  • Saturation Voltage: 620mV @ 50mA and 500mA
  • Operating Temperature: Up to 150°C
  • Packaging: Tape and Reel
