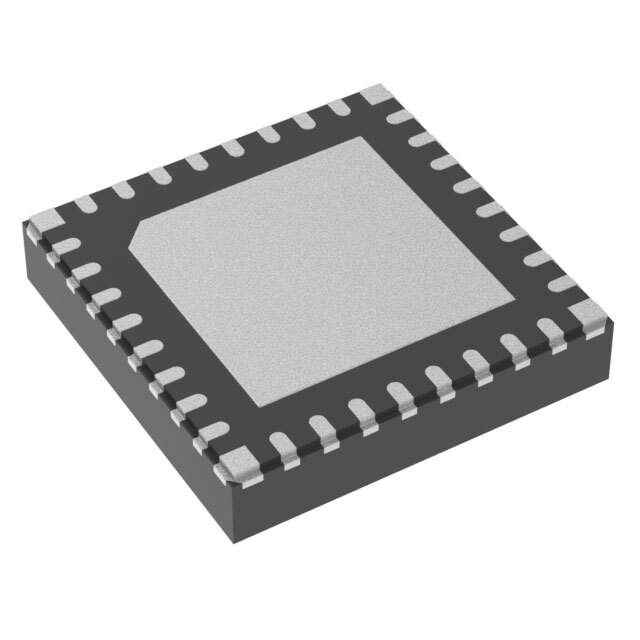

BD63800MUF-CE2 Real Image
Same model may have multiple batches, images only for reference.

BD63800MUF-CE2

Part No BD63800MUF-CE2
Manufacturer Rohm Semiconductor
Catalog PMIC - Motor Drivers, Controllers
Description 40V MAX, LOW-CONSUMPTION BIPOLAR  /  Bipolar Motor Driver DMOS SPI VQFN32FBV050
Datasheet
BD63800MUF-CE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Pre-Driver - Half Bridge (4)
Interface SPI
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications Automotive
Current - Output 1.21A
Voltage - Supply 6V ~ 28V
Voltage - Load 7V (Max)
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package VQFN32FBV050
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 846-BD63800MUF-CE2CT,846-BD63800MUF-CE2DKR,846-BD63800MUF-CE2TR
Standard Package 2,500
Win Source Part Number 982614-BD63800MUF-CE2
Ultra Librarian 3D Model Ultra Librarian BD63800MUF-CE2 CAD Model

Description

The Rohm Semiconductor BD63800MUF-CE2 is a PMIC - motor drivers, controllers integrated circuit with a DMOS technology.

  • Current Output: 1.21A
  • Suitable for: stepper and brushed DC motors
  • Type: Driver - fully integrated, control and power stage
  • Interface: SPI
  • Output Configuration: pre-driver - half bridge (4)
  • Voltage Load: 7V (max)
  • Voltage Supply: 6V ~ 28V
  • Mounting Type: surface mount, wettable flank
  • Package: 32-VFQFN exposed pad
  • Supplier Device Package: VQFN32FBV050
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Compliance: ECCN EAR99
