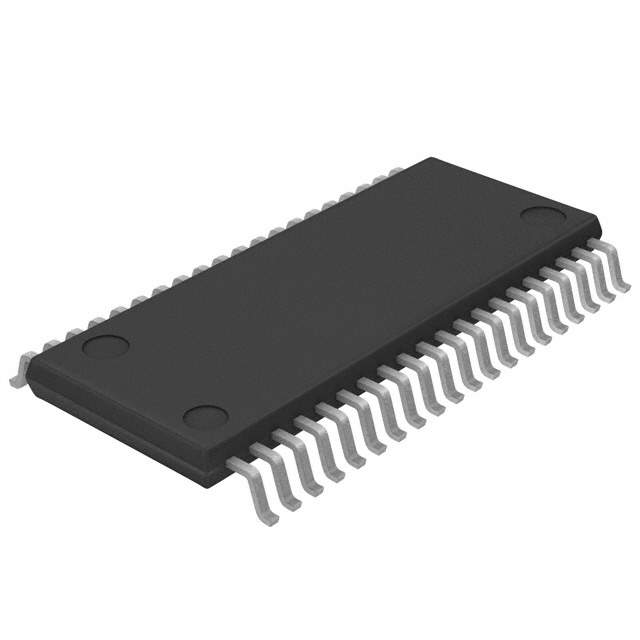

BD6385EFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Output Current 1.2A
Supply Voltage - Operating 10 V to 28 V
Voltage - Load 10 V to 28 V
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 40-HTSSOP-B
Win Source Part Number 101099-BD6385EFV-E2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BD6385EFV-E2 CAD Model

Description

BD6385EFV-E2 High-Efficiency Stepper Driver

The BD6385EFV-E2 is a compact and high-efficiency stepper motor driver, characterized by its ability to deliver precise control and reduced power loss. It's particularly suited for micro-stepping applications offering superior performance.

  • Applications/Projects:
    • Office Automation Equipment
    • Surveillance Cameras
    • Textile Machinery
  • Features and Benefits:
    • Delivers high precision with microstepping control
    • Integrated safety features to protect against overcurrent
    • Effective heat management for prolonged operation
  • Additional Details:
    • Supports various voltage levels for diverse applications
    • Compact design suitable for space-sensitive requirements
