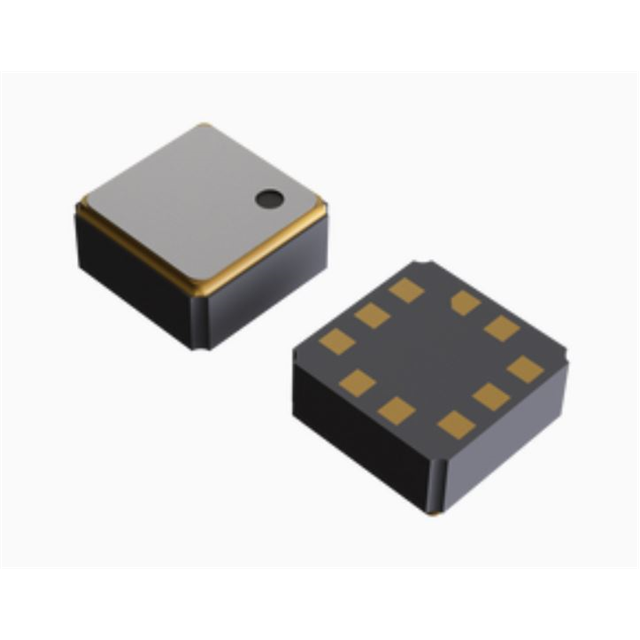

BM1390GLV-ZTR Real Image1 BM1390GLV-ZTR Real Image2
Same model may have multiple batches, images only for reference.
BM1390GLV-ZTR Real Image1 BM1390GLV-ZTR Real Image2
BM1390GLV-ZTR Real Image1 BM1390GLV-ZTR Real Image2
Same model may have multiple batches, images only for reference.

BM1390GLV-ZTR

Part No BM1390GLV-ZTR
Manufacturer Rohm Semiconductor
Catalog Pressure Sensors, Transducers
Description SENSOR 18.85PSIA
Datasheet
BM1390GLV-ZTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
Pressure Type Absolute
Operating Pressure 4.35PSI ~ 18.85PSI (30kPa ~ 130kPa)
Output Type I²C
Output -
Accuracy ±0.015PSI (±0.1kPa)
Voltage - Supply 1.7V ~ 3.6V
Port Size -
Port Style No Port
Features Temperature Compensated
Termination Style -
Maximum Pressure 290.08PSI (2000kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 10-VFLGA
Supplier Device Package -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1375629-BM1390GLV-ZTR
Ultra Librarian 3D Model Ultra Librarian BM1390GLV-ZTR CAD Model

Description

The BM1390GLV-ZTR is a temperature compensated pressure sensor manufactured by Rohm Semiconductor.

  • Temperature Range: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package/Case: 10-VFLGA
  • Voltage Supply: 1.7V to 3.6V
  • Output Type: I²C
  • Accuracy: ±0.015PSI (±0.1kPa)
  • Sensor Type: Absolute
  • Operating Pressure: 4.35PSI to 18.85PSI (30kPa to 130kPa)
  • Port Style: None
  • Maximum Pressure: 290.08PSI (2000kPa)
  • Feature: Temperature Compensation
