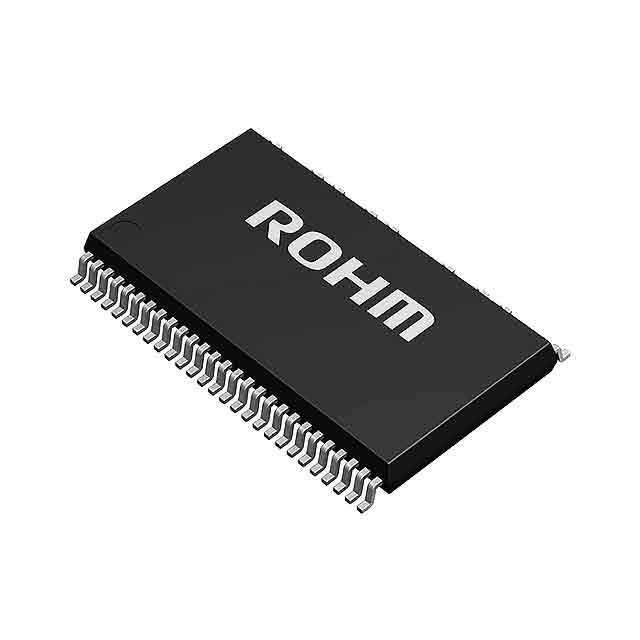

BM6205FS-E2 Real Image
Same model may have multiple batches, images only for reference.

BM6205FS-E2

Part No BM6205FS-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DVR 3PH BRUSHLSS 54SSOP  /  Half Bridge (3) Driver AC Motors Power MOSFET SSOP-A54_36
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Rohm Semiconductor
Package Tape & Reel (TR)
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 1.7Ohm
Current - Output / Channel 2.5A
Current - Peak Output 4A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 400V (Max)
Temperature Range - Operating -20°C ~ 125°C (TJ)
Features Bootstrap Circuit, Status Flag
Fault Protection Current Limiting, Over Temperature, UVLO
Mounting SMD (SMT)
Package / Case 54-SOP (0.449", 11.40mm Width), 36 Leads
Supplier Device Package SSOP-A54_36
Base Product Number BM6205
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 846-BM6205FS-E2TR,BM6205FS-E2CT,BM6205FS-E2DKR,BM6205FS-E2TR
Standard Package 1,000
Win Source Part Number 1013777-BM6205FS-E2
Ultra Librarian 3D Model Ultra Librarian BM6205FS-E2 CAD Model

Description

The Rohm Semiconductor BM6205FS-E2 is an integrated circuit for use in PMIC - Full, Half-Bridge Drivers.

  • Current Output/Channel: 2.5A
  • Voltage Load: 400V (Max)
  • Win Source Part Number: 1013777-BM6205FS-E2
  • Fault Protection: Current limiting, over temperature, and UVLO
