Same model may have multiple batches, images only for reference.

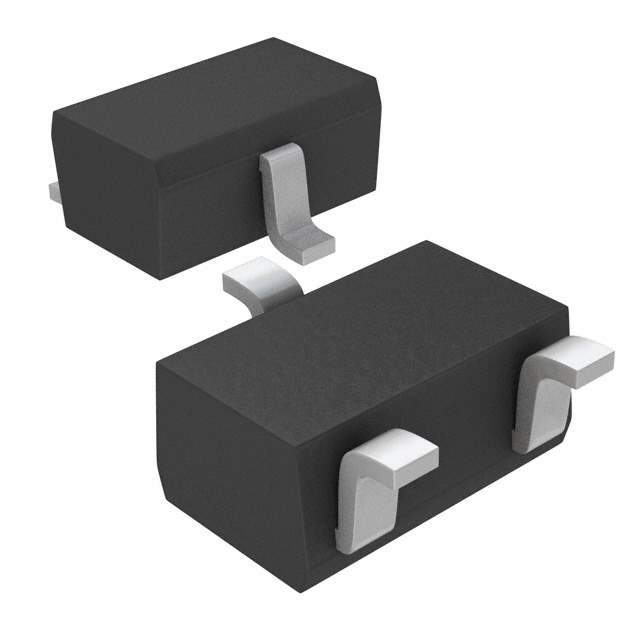

DTC114YUAT106 Real Image
Same model may have multiple batches, images only for reference.

DTC114YUAT106

Part No DTC114YUAT106
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 200MW UMT3
Datasheet
DTC114YUAT106 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 70mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 68 @ 5mA, 5V
Max Vce (sat) 300mV @ 250μA, 5mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 250MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package UMT3
Win Source Part Number 015016-DTC114YUAT106
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DTC114YUAT106 CAD Model

Description

Product Description

The DTC114YUAT106 is a versatile NPN digital transistor with integral bias resistors, simplifying circuit complexity. It's engineered to offer consistency and reliability for mass-market electronic implementations.

  • Applications: Signal transmission, amplifier modules, logic inverters.
  • Features: Wide operating voltage, standardized packaging, thermally stable.
  • Benefits: Enhances circuit efficiency, reduces production costs, maintains signal clarity.

Additional Details: Withstanding operating conditions up to +150°C, it supports a sustainable lifecycle in demanding applications.
