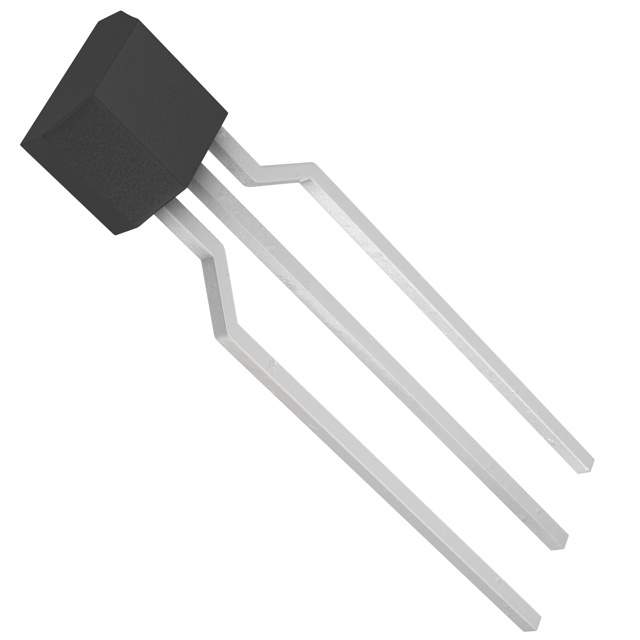

The DTC123JSA is a silicon NPN epitaxial planar transistor with built-in resistors, manufactured by Rohm Semiconductor. This pre-biased transistor simplifies circuit design by integrating resistors, reducing the number of external components needed. It is designed for various low-current switching and amplification applications.

Applications

• Digital Circuits: Used as an inverter or driver in digital logic circuits.
• Switching Circuits: Suited for low-current switching applications.
• Portable Electronics: Found in devices like mobile phones and tablets due to its small size and efficiency.
• Interface Circuits: Can act as an interface between different voltage levels.
• Load Switches: Used to turn on and off small loads.

Features

• Integrated Resistors: Features built-in base and base-emitter resistors, eliminating the need for external resistors.
• Compact Package: Available in small packages like SOT-346, making it suitable for space-constrained applications.
• NPN Configuration: Uses an NPN transistor configuration.
• Low Saturation Voltage: Provides a low saturation voltage for efficient switching.
• High Input Resistance: Offers high input resistance through the integrated resistor.

Benefits

• Reduced Component Count: Integrated resistors minimize the need for external components, saving space and cost.
• Simplified Design: Simplifies circuit design by removing the need to select and calculate resistor values.
• Improved Reliability: Fewer components can enhance the reliability of the circuit.
• Space Saving: The small package is beneficial for compact devices.
• Cost-Effective: Reduces overall system cost by integrating resistors.

Additional Details

The DTC123JSA typically has an input resistor (R1) of 2.2 kΩ and a resistor between base and emitter (R2) of 10 kΩ. It is optimized for low-power, low-voltage applications. Key specifications include collector current (Ic), base voltage (Vbe), and collector-emitter voltage (Vce) ratings. Always refer to the datasheet for detailed electrical characteristics and operating conditions.

The SOT-346 package (or similar) is common for these transistors due to its small size and suitability for surface mounting on PCBs. It supports automated assembly processes, improving manufacturing efficiency.
